Terrain Tamer Parabolic Leaf Springs are designed for the ultimate ride quality.

 Terrain Tamer Parabolic Springs PDF  Get a Quote

Traditional 4WD leaf springs are often thick, heavy, uncomfortable and loud, offering little to no flex. In response to this Terrain Tamer developed their 4WD Parabolic Leaf Springs, applying a carefully researched design and modern technology to a well-established idea from the trucking industry. +

Containing fewer leaves than regular leaf springs, they are named for their tapered ‘parabolic’ design - thicker in the centre and thinner toward the ends, eliminating the weight of traditional leaf packs and dramatically reduces the unsprung weight of the vehicle and making them safer both on the road, and in the workshop. This lower weight also creates a more comfortable ride, whether loaded or unloaded, addressing the varying and ever-changing applications of the modern 4WD parts.

The design helps the spring to flex while still providing the strength needed for heavy loads, particularly useful when challenged with difficult terrain, as the flex afforded with a Parabolic Spring allows the spring to give a little when the driver hits a bump in the road, reducing the shock transferred to the crown wheel and pinion, stopping the wheel from spinning and essentially maintaining safety and drive.

The new shape also provides better axle articulation, and almost no interleaf friction, allowing the spring to compress or extend with ease without touching until there is a reasonable load on the vehicle, which means the springs are quieter and also helps minimise issues with rust build up, which can be a major cause of failure in standard leaf springs.

Terrain Tamer is also offers hilux suspension upgrades! Close

Utilising new technology on an old design, the parabolic springs allow for a comfortable ride whether the vehicle is fully loaded or empty.

  • Lighter – Less unsprung weight
  • Less Shock – Less shock load on the differential gears
  • Quieter – The leafs do not touch each other
  • Comfortable – With better articulation
  • Strong – Exceptional load carrying capability

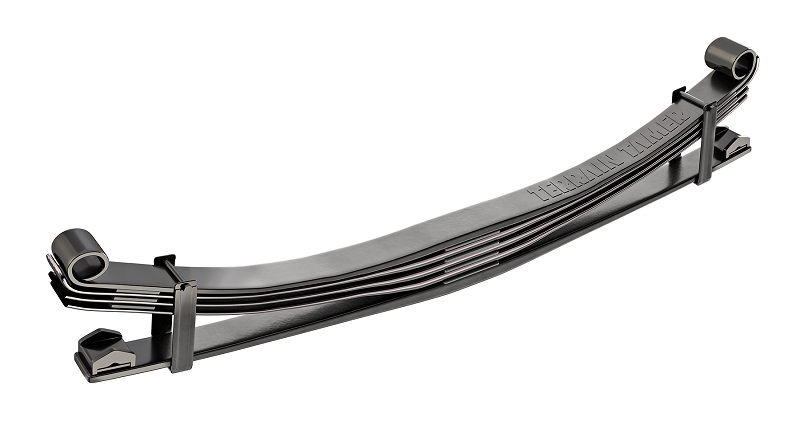

Parabolic Leaf Springs

Parabolic Leaf Springs typically contain fewer leafs than traditional leaf packs and get their name from their tapered “parabolic” design, meaning they are thicker in the centre and thinner at the ends. Already a well-established idea in the trucking industry, Terrain Tamer have applied their own carefully researched design and modern technology, and use a special grade steel to develop their range of Parabolic Leaf Springs specifically for 4WD vehicles.

Traditionally heavy linear leaf packs can also be uncomfortable and loud and can create a safety issue, as they offer little to no flex, meaning that when a driver hits a bump, or finds themselves in a rough offroad situation, the rigidity of the leaf pack will cause the opposite wheel will lift, spinning and losing traction, ceasing drive and effectively endangering the driver. In a Parabolic spring, the tapered design of each leaf allows the stress to be distributed more evenly across the spring, and each leaf is allowed to work independently with enhanced flex without sacrificing load capacity, and keeping all four wheels on the ground.

This design of Parabolic Springs eliminates the weight of often heavy, thick, traditional leaf packs and dramatically reducing the unsprung weight of the vehicle, essentially freeing up the weight needed for practical use. This lower unsprung weight addresses the issue of GVM limits, and also acts to create a more comfortable ride when the vehicle is unloaded, accommodating the varying and ever-changing applications that the modern day 4WD is used for, freeing up weight for towing heavy loads, carrying tools or touring with the family, and ensuring it is comfortable whether empty or loaded. The Parabolic shape also provides better axle articulation, as well as almost no interleaf friction, allowing the spring to compress or extend with ease without touching each other until there is a reasonable load on the vehicle. This feature means that the springs are not only quieter, but it also acts to help minimise any issues with rust build up, which can be a major cause of failure in standard leaf springs.

The Parabolic design allows the spring to flex while still providing the strength needed to bear the weight of heavy loads. This is particularly useful in 4WD applications that carry excessive load on the driveline, or when challenged with difficult terrain, as the flex afforded with a Parabolic Spring lets it give a little when the driver hits a bump in the road, allowing the differential housing to rotate with the springs and effectively providing a smoother ride, reducing the shock transferred to the crown wheel and pinion, stopping the wheel from spinning and maintaining safety and drive. The same force with a standard leaf pack would almost certainly cause more shock to the vehicle and driver

FIAT - Parabolic Leaf Springs Suitable for Fiat Vehicles

MAKE MODEL YEAR PART NO. STORE DESCRIPTION KIT STORE
FULLBACK   2016- MIT011P BUY NOW REAR RAISED 40MM-300-500KG PARABOLIC SK080 BUY NOW
FULLBACK   2016- MIT011HDP BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK080 BUY NOW

FORD - Parabolic Leaf Springs Suitable for Ford Vehicles

MAKE MODEL YEAR PART NO. STORE DESCRIPTION KIT STORE
RANGER PX I, II, III 9/2011- TFL012P BUY NOW REAR RAISED 40MM-300-500KG PARABOLIC SK072/98 BUY NOW BUY NOW
RANGER PX I, II, III 9/2011- TFL012HDP BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK072/98 BUY NOW BUY NOW

HOLDEN - Parabolic Leaf Springs Suitable for Holden Vehicles

MAKE MODEL YEAR PART NO. STORE DESCRIPTION KIT STORE
COLORADO  RG1,2,3 5/2012- ISU016P BUY NOW REAR RAISED 40MM-300-500KG PARABOLIC SK075/76 BUY NOW BUY NOW
COLORADO RG1,2,3 5/2012- ISU016HDP BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK075/76 BUY NOW BUY NOW

ISUZU - Parabolic Leaf Springs Suitable for Isuzu Vehicles

MAKE MODEL YEAR PART NO. STORE DESCRIPTION KIT STORE
D MAX TFS85 7/2012-6/2020 ISU016P BUY NOW REAR RAISED 40MM-300-500KG PARABOLIC SK073 BUY NOW
D MAX TFS85 7/2012-6/2020 ISU016HDP BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK073 BUY NOW
D MAX TFS40 7/2020- ISU026P BUY NOW REAR RAISED 40MM UP TO 300KG PARABOLIC SK106 BUY NOW
D MAX TFS40 7/2020- ISU016P BUY NOW REAR RAISED 40MM-300-500KG PARABOLIC SK106 BUY NOW

LDV - Parabolic Leaf Springs Suitable for LDV Vehicles

MAKE MODEL YEAR PART NO. STORE DESCRIPTION KIT STORE
LDV  T60 10/2017- ISU016P BUY NOW REAR RAISED 40MM-300-500KG PARABOLIC SK101 BUY NOW
LDV T60 10/2017- ISU016HDP BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK101 BUY NOW

MAZDA - Parabolic Leaf Springs Suitable for Mazda Vehicles

MAKE MODEL YEAR PART NO. STORE DESCRIPTION KIT STORE
BT50  UP/UR 11/2011-7/2020 TFL012P BUY NOW REAR RAISED 40MM-300-500KG PARABOLIC SK072 BUY NOW
BT50  UP/UR 11/2011-7/2020 TFL012HDP BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK072 BUY NOW
BT50 TFS40 8/2020- ISU026 BUY NOW REAR RAISED 40MM 200-300KG PARABOLIC SK106 BUY NOW
BT50 TFS40 8/2020- ISU026P BUY NOW REAR RAISED 40MM UP TO 300KG PARABOLIC SK106 BUY NOW
BT50 TFS40 8/2020- ISU016P BUY NOW REAR RAISED 40MM-300-500KG PARABOLIC SK106 BUY NOW

MITSUBISHI - Parabolic Leaf Springs Suitable for Mitsubishi Vehicles

MAKE MODEL YEAR PART NO. STORE DESCRIPTION KIT STORE
TRITON  MQ 2015- MIT011P BUY NOW REAR RAISED 40MM-300-500KG PARABOLIC SK080 BUY NOW
TRITON MQ 2015- MIT011HDP BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK080 BUY NOW
TRITON MR 2019- MIT011P BUY NOW REAR RAISED 40MM-300-500KG PARABOLIC SK080 BUY NOW
TRITON MR 2019- MIT011HDP BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK080 BUY NOW

TOYOTA - Parabolic Leaf Springs Suitable for Toyota Vehicles

MAKE MODEL YEAR PART NO. STORE DESCRIPTION KIT STORE
HILUX GGN25 3/2005- THL105P BUY NOW REAR RAISED 40MM 300-500KG PARABOLIC SK016 BUY NOW
HILUX GGN25 3/2005- THL108P BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK016  BUY NOW
HILUX GGN125 5/2015-2021 THL109P BUY NOW REAR RAISED 40MM 300-500KG PARABOLIC SK081 BUY NOW
HILUX GGN125 6/2015-2021 THL109HDP BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK081 BUY NOW
HILUX GGN125 5/2015 THL109EHDP   REAR RAISED 40MM 700KG PLUS CONSTANT LOAD PARABOLI SK081X
HILUX GUN125 5/2015- THL109P BUY NOW REAR RAISED 40MM 300-500KG PARABOLIC SK081 BUY NOW
HILUX GUN125 5/2015- THL109HDP BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK081 BUY NOW
HILUX GUN125 5/2015 THL109EHDP   REAR RAISED 40MM 700KG PLUS CONSTANT LOAD PARABOLI SK081X
HILUX GUN126 5/2015- THL109P BUY NOW REAR RAISED 40MM 300-500KG PARABOLIC SK081 BUY NOW
HILUX GUN126 5/2015- THL109HDP BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK081 BUY NOW
HILUX GUN126 5/2015- THL109EHDP   REAR RAISED 40MM 700KG PLUS CONSTANT LOAD PARABOLI SK081X
HILUX KUN25 8/2004- THL105P BUY NOW REAR RAISED 40MM 300-500KG PARABOLIC SK016  BUY NOW
HILUX KUN25 8/2004- THL108P BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK016  BUY NOW
HILUX KUN26 3/2005- THL105P BUY NOW REAR RAISED 40MM 300-500KG PARABOLIC SK016  BUY NOW
HILUX KUN26 3/2005- THL108P BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK016 BUY NOW
HILUX KUN125 5/2015- THL109P BUY NOW REAR RAISED 40MM 300-500KG PARABOLIC SK081  BUY NOW
HILUX KUN125 5/2015- THL109HDP BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK081  BUY NOW
HILUX KUN125 5/2015- THL109EHDP   REAR RAISED 40MM 700KG PLUS CONSTANT LOAD PARABOLIC SK081X
HILUX KUN126 5/2015- THL109P BUY NOW REAR RAISED 40MM 300-500KG PARABOLIC SK081  BUY NOW
HILUX KUN126 5/2015- THL109HDP BUY NOW REAR RAISED 40MM 500-700KG PARABOLIC SK081  BUY NOW
HILUX KUN126 5/2015- THL109EHDP   REAR RAISED 40MM 700KG PLUS CONSTANT LOAD PARABOLIC SK081X
LANDCRUISER BJ60 8/1980-1/1990 TLC009P   FRONT RAISED 50MM UP TO 500KG PARABOLIC SK010 BUY NOW
LANDCRUISER BJ60 8/1980-1/1990 TLC010P   REAR RAISED 50MM UP TO 500KG PARABOLIC SK010 BUY NOW
LANDCRUISER BJ70 11/1984- TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC  SK008 BUY NOW
LANDCRUISER BJ73 11/1984- TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC  SK008 BUY NOW
LANDCRUISER BJ74 11/1984- TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC  SK008 BUY NOW
LANDCRUISER BJ75 11/1984-8/1988 TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC SK009 BUY NOW
LANDCRUISER BJ75 11/1984-8/1988 TLC015P BUY NOW REAR RAISED 50MM UP TO 500KG PARABOLIC SK009 BUY NOW
LANDCRUISER FJ60 8/1980-10/1985 TLC009P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC SK010 BUY NOW
LANDCRUISER FJ60 8/1980-10/1985 TLC010P BUY NOW REAR RAISED 50MM UP TO 500KG PARABOLIC SK010 BUY NOW
LANDCRUISER FJ62 8/1980-1/1990 TLC009P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC SK010 BUY NOW
LANDCRUISER FL62 8/1980-1/1990 TLC010P BUY NOW REAR RAISED 50MM UP TO 500KG PARABOLIC SK010 BUY NOW
LANDCRUISER FJ70 11/1984- TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC  SK008 BUY NOW
LANDCRUISER FJ73 11/1984- TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC  SK008 BUY NOW
LANDCRUISER FJ75 11/1984-10/1992 TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC SK009 BUY NOW
LANDCRUISER FJ75 11/1984-10/1992 TLC015P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC SK009 BUY NOW
LANDCRUISER FZJ70 1/1990- TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC  SK008 BUY NOW
LANDCRUISER FZJ75 1/1990- TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC SK009 BUY NOW
LANDCRUISER FZJ75 1/1990-12/2003 TLC015P BUY NOW REAR RAISED 50MM UP TO 500KG PARABOLIC SK009 BUY NOW
LANDCRUISER FZJ78 8/1999- TLC016EHDP BUY NOW REAR RAISED 50MM 500-700KG PARABOLIC Troop Carrier SK007 BUY NOW
LANDCRUISER FZJ78 8/1999- TLC016AP BUY NOW REAR RAISED 50MM 700KG PLUS PARABOLIC SK007X BUY NOW
LANDCRUISER FZJ79 8/1999- TLC016HDP BUY NOW REAR RAISED 50MM 300-500KG PARABOLIC Single Cab Only SK007 BUY NOW
LANDCRUISER FZJ79 8/1999- TLC016EHDP BUY NOW REAR RAISED 50MM 500-700KG PARABOLIC Dual & Single Cab  SK007 BUY NOW
LANDCRUISER FZJ79 8/1999- TLC016AP BUY NOW REAR RAISED 50MM 700KG PLUS PARABOLIC SK007X BUY NOW
LANDCRUISER GRJ78 7/2009- TLC016EHDP BUY NOW REAR RAISED 50MM 500-700KG PARABOLIC Troop Carrier SK007 BUY NOW
LANDCRUISER GRJ78 7/2009- TLC016AP BUY NOW REAR RAISED 50MM 700KG PLUS PARABOLIC SK007X BUY NOW
LANDCRUISER GRJ79 7/2009- TLC016HDP BUY NOW REAR RAISED 50MM 300-500KG PARABOLIC Single Cab Only SK007 BUY NOW
LANDCRUISER GRJ79 7/2009- TLC016EHDP BUY NOW REAR RAISED 50MM 500-700KG PARABOLIC Dual & Single Cab  SK007 BUY NOW
LANDCRUISER GRJ79 7/2009- TLC016AP BUY NOW REAR RAISED 50MM 700KG PLUS PARABOLIC  SK007X BUY NOW
LANDCRUISER HJ60 8/1980-10/1985 TLC009P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC SK010 BUY NOW
LANDCRUISER HJ60 8/1980-10/1985 TLC010P BUY NOW REAR RAISED 50MM UP TO 500KG PARABOLIC SK010 BUY NOW
LANDCRUISER HJ61 8/1980-1/1990 TLC009P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC SK010 BUY NOW
LANDCRUISER HJ61 8/1980-1/1990 TLC010P BUY NOW REAR RAISED 50MM UP TO 500KG PARABOLIC SK010 BUY NOW
LANDCRUISER HJ62 10/1985-1/1990 TLC009P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC SK010 BUY NOW
LANDCRUISER HJ62 10/1985-1/1990 TLC010P BUY NOW REAR RAISED 50MM UP TO 500KG PARABOLIC SK010 BUY NOW
LANDCRUISER HJ75 11/1984-1/1990 TLC013P BUY NOW  FRONT RAISED 50MM UP TO 500KG PARABOLIC SK009 BUY NOW
LANDCRUISER HJ75 11/1984-1/1990 TLC015P BUY NOW REAR RAISED 50MM UP TO 500KG PARABOLIC SK009 BUY NOW
LANDCRUISER HDJ78 8/1999- TLC016EHDP BUY NOW REAR RAISED 50MM 500-700KG PARABOLIC Troop Carrier SK007 BUY NOW
LANDCRUISER HDJ78 8/1999- TLC016AP BUY NOW REAR RAISED 50MM 700KG PLUS PARABOLIC SK007X BUY NOW
LANDCRUISER HDJ79 8/1999- TLC016HDP BUY NOW REAR RAISED 50MM 300-500KG PARABOLIC Single Cab Only SK007 BUY NOW
LANDCRUISER HDJ79 8/1999- TLC016EHDP BUY NOW REAR RAISED 50MM 500-700KG PARABOLIC Dual & Single Cab SK007 BUY NOW
LANDCRUISER HDJ79 8/1999- TLC016AP BUY NOW REAR RAISED 50MM 700KG PLUS PARABOLIC  SK007X BUY NOW
LANDCRUISER HZJ70 1/1990- TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC  SK008 BUY NOW
LANDCRUISER HZJ73 1/1990- TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC  SK008 BUY NOW
LANDCRUISER HZJ75 1/1990- TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC SK009 BUY NOW
LANDCRUISER HZJ75 1/1990-12/2003 TLC015P BUY NOW REAR RAISED 50MM UP TO 500KG PARABOLIC SK009 BUY NOW
LANDCRUISER HZJ76 1/2007- TLC034P BUY NOW REAR RAISED 50MM UP TO 300KG PARABOLIC SK036 BUY NOW
LANDCRUISER HZJ76 1/2007- TLC034HDP BUY NOW REAR RAISED 50MM 300-700KG PARABOLIC SK036 BUY NOW
LANDCRUISER HZJ77 1/1990- TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC  SK008 BUY NOW
LANDCRUISER HZJ77 1/1990- TLC034P BUY NOW REAR RAISED 50MM UP TO 300KG PARABOLIC SK089 BUY NOW
LANDCRUISER HZJ77 1/1990- TLC034HDP BUY NOW REAR RAISED 50MM 300-700KG PARABOLIC SK089 BUY NOW
LANDCRUISER HZJ78 8/1999- TLC016EHDP BUY NOW REAR RAISED 50MM 500-700KG PARABOLIC Troop Carrier SK007 BUY NOW
LANDCRUISER HZJ78 8/1999- TLC016AP BUY NOW REAR RAISED 50MM 700KG PLUS PARABOLIC  SK007X BUY NOW
LANDCRUISER HZJ79 8/1999- TLC016HDP BUY NOW REAR RAISED 50MM 300-500KG PARABOLIC Single Cab Only SK007 BUY NOW
LANDCRUISER HZJ79 8/1999- TLC016EHDP BUY NOW REAR RAISED 50MM 500-700KG PARABOLIC Troop Carrier Dual & Single Cab SK007 BUY NOW
LANDCRUISER HZJ79 8/1999- TLC016AP BUY NOW REAR RAISED 50MM 700KG PLUS PARABOLIC  SK007X BUY NOW
LANDCRUISER PZJ70 1/1990- TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC  SK008 BUY NOW
LANDCRUISER PZJ73 1/1990- TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC  SK008 BUY NOW
LANDCRUISER PZJ75 1/1990- TLC013P BUY NOW FRONT RAISED 50MM UP TO 500KG PARABOLIC SK009 BUY NOW
LANDCRUISER PZJ75 1/1990- TLC015P BUY NOW REAR RAISED 50MM UP TO 500KG PARABOLIC SK009 BUY NOW
LANDCRUISER VDJ76 1/2007- TLC034P BUY NOW REAR RAISED 50MM UP TO 300 PARABOLIC SK036 BUY NOW
LANDCRUISER VDJ76 1/2007- TLC034HDP BUY NOW REAR RAISED 50MM 300-700KG PARABOLIC SK036 BUY NOW
LANDCRUISER VDJ78 1/2007- TLC016EHDP BUY NOW REAR RAISED 50MM 500-700KG PARABOLIC Troop Carrier SK007 BUY NOW
LANDCRUISER VDJ78 1/2007- TLC016AP BUY NOW REAR RAISED 50MM 700KG PLUS PARABOLIC  SK007X BUY NOW
LANDCRUISER VDJ79 1/2007- TLC016HDP BUY NOW REAR RAISED 50MM 300-500KG PARABOLIC Single Cab Only SK007 BUY NOW
LANDCRUISER VDJ79 1/2007- TLC016EHDP BUY NOW REAR RAISED 50MM 500-700KG PARABOLIC Troop Carrier Dual & Single Cab SK007 BUY NOW
LANDCRUISER VDJ79 1/2007- TLC016AP BUY NOW REAR RAISED 50MM 700KG PLUS PARABOLIC SK007X BUY NOW

PARABOLIC SPRING REPLACEMENT PARTS

    TTPSRP SPRING RUBBER PAD   BUY NOW
    TTPSS SPRING SILENCER PAD   BUY NOW
    TTPSRS SPRING REATINER PLASTIC SLEEVE   BUY NOW
