Hand Brake Upgrade Kits

Terrain Tamer have developed a range of Handbrake Kits & brake upgrade kits which are perfect for a Landcruiser Handbrake upgrade. Handbrake Kits include radius ground brake shoes, as well as all springs, retainers, pins, pivots etc required for an overhaul of the Handbrake system. +

Perhaps most importantly, the kits also include a dogbone strut which is slightly longer than the original unit fitted to Landcruiser models. OE Manufactured to Terrain Tamer tooling, the modified dogbone strut is Australian Made acts to provide a stronger hold and remove some of the wear that develops in pivot points, pull pins etc over time.

A poorly functioning handbrake system naturally creates a critical reliability and safety issue, and unfortunately some vehicles that are used in heavy duty conditions, feature a poorly designed handbrake system that is prone to failure. Close

  • Includes modified struts for stronger hold
  • Struts Made in Australia
  • OE Manufactured
  • Terrain Tamer Tooling

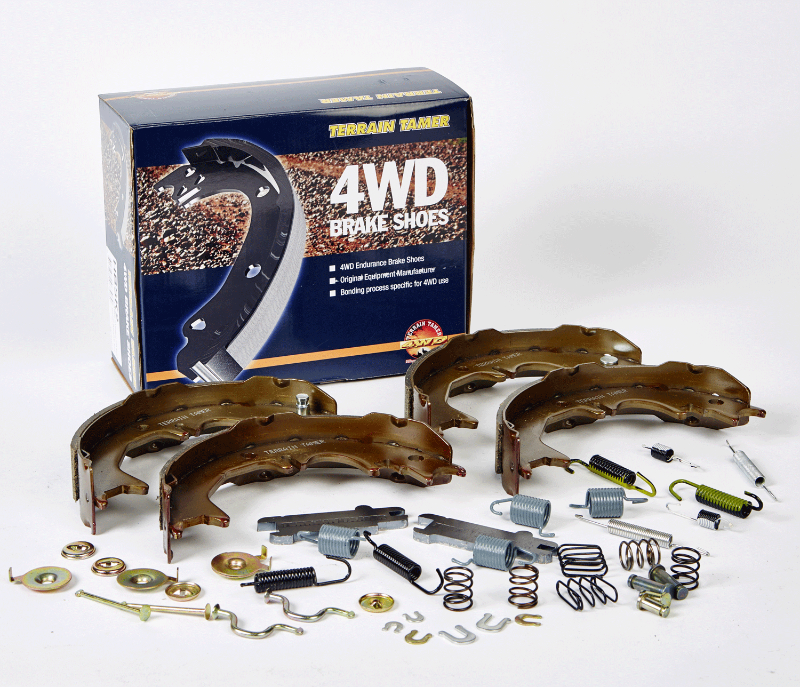

HBK with Strut

 Terrain Tamer Handbrake Kits PDF  Get a Quote

Hand Brake Upgrade Kits FAQ

A 4x4 hand brake upgrade kit is a set of parts that can be installed to replace or enhance the existing hand brake system in your vehicle. This kit typically includes components such as brackets, cables, shoes and pads, rotors, drums, and springs. These kits are designed to provide improved performance and control when using the handbrake. By upgrading the hand brake system with this kit, you can improve braking power for better stopping power when off-roading or on slippery surfaces.

The components included in the 4x4 hand brake upgrade kit must be installed correctly to ensure optimal performance. When correctly installed, they will provide improved control and performance when using the handbrake. This can help give you better stopping power when off-roading or on slippery surfaces such as mud or snow. It is essential that the installation of all components is done by a qualified mechanic to ensure the proper fit and function of all parts in the kit.

A hand brake upgrade kit offers many advantages to your 4x4 vehicle. By upgrading your vehicle’s existing system with components such as brackets, cables, shoes and pads, rotors, drums, and springs you can improve braking performance. This can help provide improved stopping power when off-roading or on slippery surfaces by increasing the grip of the brakes. Additionally, these kits help to reduce wear on other parts of your vehicle's braking system which will extend their life and help protect against costly repairs in the long run.



MITSUBISHI - Hand Brake Upgrade Kits Suitable for Mitsubishi Vehicles



MAKEMODELYEARPART NO.NOTES
Triton ML/MN 2005- HBK7 Adjuster & Spring Kit
Triton ML/MN 2005- HBSK7 Hand Brake Shoe & Parts Kit
Triton MQ 2005- HBK7 Adjuster & Spring Kit
Triton MQ 2005- HBSK7 Hand Brake Shoe & Parts Kit

TOYOTA - Hand Brake Upgrade Kits Suitable for Toyota Vehicles



MAKEMODELYEARPART NO.NOTES
FJ Cruiser GSJ15 11/2010- HBK5 Hand Brake Spring Kit
FJ Cruiser GSJ15 11/2010- HBSK5 Hand Brake Shoe & Parts Kit
FJ Cruiser GSJ15 11/2010- HBSK5C Hand Brake Shoe & Spring Kit Major
FJ Cruiser GSJ15 11/2010- 46550-60030K Hand Brake Shoe Kit
FJ Cruiser GSJ15 11/2010- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser BJ40 3/1969-7/1980 HBK3 Hand Brake Spring Kit
Landcruiser BJ40 2/1972-10/1984 HBSK1 Hand Brake Shoe & Spring Kit Minor
Landcruiser BJ40 2/1972-7/1980 46550-60011 Hand Brake Shoe Kit Transmission Hand Brake
Landcruiser BJ42 8/1980- HBK3 Hand Brake Spring Kit
Landcruiser BJ42 8/1980-10/1984 HBSK1 Hand Brake Shoe & Spring Kit Minor
Landcruiser BJ42 8/1980-10/1984 46550-60011 Hand Brake Shoe Kit Transmission Hand Brake
Landcruiser BJ45 8/1980-10/1984 46550-60011

Hand Brake Shoe Kit Transmission Hand Brake
Landcruiser FJ40 3/1969- HBK3 Hand Brake Spring Kit
Landcruiser FJ40 2/1972-7/1980 HBSK1 Hand Brake Shoe & Spring Kit Minor
Landcruiser FJ40 2/1972-10/1984 46550-60011 Hand Brake Shoe Kit Transmission Hand Brake
Landcruiser FJ45 3/1969- HBK3 Hand Brake Spring Kit
Landcruiser FJ45 2/1972-7/1980 HBSK1 Hand Brake Shoe & Spring Kit Minor
Landcruiser FJ45 2/1972-10/1984 46550-60011 Hand Brake Shoe Kit Transmission Hand Brake
Landcruiser FJ55 1/1975-7/1980 HBK3 Hand Brake Spring Kit
Landcruiser FJ55 1/1975-7/1980 HBSK1 Hand Brake Shoe & Spring Kit Minor
Landcruiser FJ55 1/1975-7/1980 46550-60011 Hand Brake Show Kit Transmission Hand Brake
Landcruiser FJ80 1/1990-8/1992 HBSK2 Hand Brake Shoe & Spring Kit Minor DIsc Brake
Landcruiser FJ80 1/1990-8/1992 HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser FJ80 1/1990-8/1992 46550-60030K Hand Brake Shoe Kit
Landcruiser FJ80 1/1990-8/1992 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser FZJ70 8/1992- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Landcruiser FZJ70 8/1992- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser FZJ70 8/1992- 46550-60030K Hand Brake Shoe Kit
Landcruiser FZJ70 8/1992- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser FZJ75 8/1992- HBK2 Hand Brake Spring Kit
Landcruiser FZJ75 8/1992- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Landcruiser FZJ75 8/1992- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser FZJ75 8/1992- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser FZJ75 8/1992- 46550-60030K Hand Brake Shoe Kit
Landcruiser FZJ75 8/1992- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser FZJ78 8/1992- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser FZJ78 8/1992- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser FZJ78 8/1992- 46550-60030K Hand Brake Shoe Kit
Landcruiser FZJ78 8/1999- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser FZJ79 8/1999- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser FZJ79 8/1999- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser FZJ79 8/1999- 46550-60030K Hand Brake Shoe Kit
Landcruiser FZJ79 8/1999- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser FZJ80 8/1992- HBK2 Hand Brake Spring Kit
Landcruiser FZJ80 8/1992- HBSK3 Hand Brake Shoe & Parts Kit
Landcruiser FZJ80 8/1992- HBSK3C Hand Brake Kit Complete
Landcruiser FZJ80 1/1998- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser FZJ80 8/1992- 46550-60041K Hand Brake Shoe Kit
Landcruiser FZJ100 1/1998- HBK2 Hand Brake Spring Kit
Landcruiser FZJ100 1/1998- HBSK3 Hand Brake Shoe & Parts Kit
Landcruiser FZJ100 1/1998- HBSK3C Hand Brake Kit Complete
Landcruiser FZJ100 1/1998- 46550-60041K Hand Brake Shoe Kit
Landcruiser FZJ105 1/1998- HBK2 Hand Brake Spring Kit
Landcruiser FZJ105 1/1998- HBSK3 Hand Brake Shoe & Parts Kit
Landcruiser FZJ105 1/1998- HBSK3C Hand Brake Kit Complete
Landcruiser FZJ105 1/1998- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser FZJ105 1/1998- 46550-60041K Hand Brake Shoe Kit
Landcruiser HJ45 3/1969-7/1980 HBK3 Hand Brake Spring Kit
Landcruiser HJ45 1/1975-7/1980 HBSK1 Hand Brake Shoe & Spring Kit Minor
Landcruiser HJ45 1/1975-7/1980 46550-60011 Hand Brake Shoe Kit Transmission Hand Brake
Landcruiser HJ47 8/1980-10/1984 HBK3 Hand Brake Spring Kit
Landcruiser HJ47 8/1980-10/1984 HBSK1 Hand Brake Shoe & Spring Kit Minor
Landcruiser HJ47 8/1980-10/1984 46550-60011 Hand Brake Shoe Kit Transmission Hand Brake
Landcruiser HDJ78 8/2001- HBK2 Hand Brake Spring Kit
Landcruiser HDJ78 8/2001- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Landcruiser HDJ78 8/1999- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser HDJ78 8/1999- 46550-60030K Hand Brake Shoe Kit
Landcruiser HDJ78 8/1999- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser HDJ79 8/1999- HBK2 Hand Brake Spring Kit
Landcruiser HDJ79 8/2001- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Landcruiser HDJ79 8/2001- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser HDJ79 8/1999- 46550-60030K Hand Brake Shoe Kit
Landcruiser HDJ79 8/1999- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser HDJ80 1/1990- HBK2 Hand Brake Spring Kit
Landcruiser HDJ80 1/1990-8/1992 HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Landcruiser HDJ80 1/1990-8/1992 HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser HDJ80 8/1992- HBSK3 Hand Brake Shoe & Parts Kit
Landcruiser HDJ80 8/1992- HBSK3C Hand Brake Kit Complete
Landcruiser HDJ80 1/1998- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser HDJ80 1/1990-8/1992 46550-60030K Hand Brake Shoe Kit
Landcruiser HDJ80 1/1990-8/1992 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser HDJ80 8/1992- 46550-60041K Hand Brake Shoe Kit
Landcruiser HDJ100 1/1998- HBK2 Hand Brake Spring Kit
Landcruiser HDJ100 1/1998- HBSK3 Hand Brake Shoe & Parts Kit
Landcruiser HDJ100 1/1998- HBSK3C Hand Brake Kit Complete
Landcruiser HDJ100 1/1998- 46550-60041K Hand Brake Shoe Kit
Landcruiser HZJ70 8/1992- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Landcruiser HZJ70 8/1992- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser HZJ70 8/1992- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser HZJ70 8/1992- 46550-60030K Hand Brake Shoe Kit
Landcruiser HZJ70 8/1992- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser HZJ73 8/1992- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Landcruiser HZJ73 8/1992- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser HZJ73 8/1992- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser HZJ73 8/1992- 46550-60030K Hand Brake Shoe Kit
Landcruiser HZJ73 8/1992- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser HZJ75 8/1992- HBK2 Hand Brake Spring Kit
Landcruiser HZJ75 8/1992- HBSK2 Hand Brake Shoe & Spring Kit Minor
Landcruiser HZJ75 8/1992- HBSK2C Hand Brake Shoe & Spring Kit Major
Landcruiser HZJ75 8/1992- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser HZJ75 8/1992- 46550-60030K Hand Brake Shoe Kit
Landcruiser HZJ75 8/1992- 46550-60030KM Hand Brake Shoe & Modified Strut
Landcruiser HZJ78 8/1999- HBK2 Hand Brake Spring Kit
Landcruiser HZJ78 8/1999- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Landcruiser HZJ78 8/1999- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser HZJ78 8/1999- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser HZJ78 8/1999- 46550-60030K Hand Brake Shoe Kit
Landcruiser HZJ78 8/1999- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser HZJ79 8/1999- HBK2 Hand Brake Spring Kit
Landcruiser HZJ79 8/1999- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Landcruiser HZJ79 8/1999- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser HZJ79 8/1999- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser HZJ79 8/1999- 46550-60030K Hand Brake Shoe Kit
Landcruiser HZJ79 8/1999- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser HZJ80 1992- HBK2 Hand Brake Spring Kit
Landcruiser HZJ80 1/1990-8/1992 HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Landcruiser HZJ80 1/1990-8/1992 HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser HZJ80 8/1992- HBSK3 Hand Brake Shoe &Parts Kit
Landcruiser HZJ80 8/1992- HBSK3C Hand Brake Kit Complete
Landcruiser HZJ80 1/1998- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser HZJ80 1/1990-8/1992 46550-60030K Hand Brake Shoe Kit
Landcruiser  HZJ80 1/1990-8/1992 46550-60030KM Hand Brake Shoe & Modufued Strut Kit
Landcruiser HZJ80 8/1992- 46550-60041K Hand Brake Shoe Kit
Landcruiser HZJ105 1/1998- HBK2 Hand Brake Spring Kit
Landcruiser HZJ105 1/1998- HBSK3 Hand Brake Shoe & Parts Kit
Landcruiser HZJ105 1/1998- HBSK3C Hand Brake Kit Complete
Landcruiser HZJ105 1/1999- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser HZJ105 1/1998- 46550-60041K Hand Brake Shoe Kit
Landcruiser LJ70 1/1990- 46550-60030K Hand Brake Shoe Kit
Landcruiser LJ73 1/1990- 46550-60030K Hand Brake Shoe Kit
Landcruiser UZJ100 1/1998- HBK2 Hand Brake Spring Kit
Landcruiser UZJ100 1/1998- HBSK3 Hand Brake Shoe & Parts Kit
Landcruiser UZJ100 1/1998- HBSK3C Hand Brake Kit Complete
Landcruiser UZJ100 1/1999- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser UZJ100 1/1998- 46550-60041K Hand Brake Shoe Kit
Landcruiser VDJ76 1/2007- HBK2 Hand Brake Spring Kit
Landcruiser VDJ76 1/2007- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Landcruiser VDJ76 1/2007- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser VDJ76 1/2007- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser VDJ76 1/2007- 46550-60030K Hand Brake Shoe Kit
Landcruiser VDJ76 1/2007- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser VDJ78 1/2007- HBK2 Hand Brake Spring Kit
Landcruiser VDJ78 1/2007- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Landcruiser VDJ78 1/2007- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser VDJ78 1/2007- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser VDJ78 1/2007- 46550-60030K Hand Brake Shoe Kit
Landcruiser VDJ78 1/2007- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Landcruiser VDJ79 1/2007- HBK2 Hand Brake Spring Kit
Landcruiser VDJ79 1/2007- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Landcruiser VDJ79 1/2007- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Landcruiser VDJ79 1/2007- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Landcruiser VDJ79 1/2007- 46550-60030K Hand Brake Shoe Kit
Landcruiser VDJ79 1/2007- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Prado GDJ150 6/2015- HBK5 Hand Brake Spring Kit
Prado GDJ150 6/2015- HBSK5 Hand Brake Shoe & Parts Kit
Prado GDJ150 6/2015- HBSK5C Hand Brake Kit Complete
Prado GDJ150 6/2015- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Prado GDJ150 6/2015- 46550-60030K Hand Brake Shoe Kit
Prado GDJ150 6/2015- 46550-60030KM Hand Brake Shoe & Strut Kit
Prado GRJ120 9/2002- HBK5 Hand Brake Spring Kit
Prado GRJ120 9/2002- HBSK5 Hand Brake Shoe & Parts Kit
Prado GRJ120 9/2002- HBSK5C Hand Brake Kit Complete
Prado GRJ120 9/2002- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Prado GRJ120 9/2002- 46550-60030K Hand Brake Shoe Kit
Prado GRJ120 9/2002- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Prado GRJ150 8/2009- HBK5 Hand Brake Spring Kit
Prado GRJ150 8/2009- HBSK5 Hand Brake Shoe & Parts Kit
Prado GRJ150 8/2009- HBSK5C Hand Brake Kit Complete
Prado GRJ150 8/2009- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
 Prado GRJ150 8/2009- 46550-60030K Hand Brake Shoe Kit
 Prado GRJ150 8/2009- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Prado KDJ90 8/2000- HBK2 Hand Brake Spring Kit
Prado KDJ90 8/2000- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Prado KDJ90 8/2000- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Prado KDJ90 8/2000- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Prado KDJ90 8/2000- 46550-60030K Hand Brake Shoe Kit
Prado KDJ90 8/2000- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Prado KDJ95 8/2000- HBK2 Hand Brake Spring Kit
Prado KDJ95 8/2000- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Prado KDJ95 8/2000- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Prado KDJ95 8/2000- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Prado KDJ95 8/2000- 46550-60030K Hand Brake Shoe Kit
Prado KDJ95 8/2000- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Prado KDJ120 9/2002- HBK5 Hand Brake Spring Kit
Prado KDJ120 9/2002- HSBK5 Hand Brake Shoe & Parts Kit Complete
Prado KDJ120 9/2002- HBSK5C Hand Brake Kit Complete
Prado KDJ120 9/2002- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
 Prado KDJ120 9/2002- 46550-60030K Hand Brake Shoe Kit
Prado KDJ120 9/2002- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Prado KDJ150 8/2009- HBK5 Hand Brake Spring Kit
Prado KDJ150 8/2009- HBSK5 Hand Brake Shoe & Parts Kit
Prado KDJ150 8/2009- HBSK5C Hand Brake Kit Complete
Prado KDJ150 8/2009- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Prado KDJ150 8/2009- 46550-60030K Hand Brake Shoe Kit
Prado KDJ150 8/2009- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
 Prado KZJ73 5/1993- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Prado KZJ73 5/1993- 46550-60030K Hand Brake Shoe Kit
Prado KZJ73 5/1993- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
 Prado KZJ90 4/1996- HBK2 Hand Brake Spring Kit
 Prado KZJ90 4/1996- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Prado KZJ90 4/1996- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Prado KZJ90 4/1996- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Prado KZJ90 4/1996- 46550-60030K Hand Brake Shoe Kit
Prado KZJ90 4/1996- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Prado KZJ95 4/1996- HBK2 Hand Brake Spring Kit
Prado KZJ95 4/1996- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
 Prado KZJ95 4/1996- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Prado KZJ95 4/1996- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Prado KZJ95 4/1996- 46550-60030K Hand Brake Shoe Kit
Prado KZJ95 4/1996- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Prado KZJ120 9/2002- HBK5 Hand Brake Show & Parks Kit
Prado KZJ120 9/2002- HBSK5 Hand Brake Kit Complete
Prado KZJ120 9/2002- HBSK5C Hand Brake Kit Complete
Prado KZJ120 9/2002- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Prado KZJ120 9/2002- 46550-60030K Hand Brake Shoe Kit
Prado KZJ120 9/2002- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Prado RZJ90 4/1996- HBK2 Hand Brake Spring Kit
Prado RZJ90 4/1996- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Prado RZJ90 4/1996- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Prado RZJ90 4/1996- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Prado RZJ90 4/1996- 46550-60030K Hand Brake Shoe Kit
Prado RZJ90 4/1996- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Prado RZJ95 4/1996- HBK2 Hand Brake Spring Kit
Prado RZJ95 4/1996- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Prado RZJ95 4/1996- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Prado RZJ95 4/1996- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Prado RZJ95 4/1996- 46550-60030K Hand Brake Shoe Kit
Prado RZJ95 4/1996- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Prado RZJ120 9/2002- HBK5 Hand Brake Spring Kit
Prado RZJ120 9/2002- HBSK5 Hand Brake Shoe & Parts Kit
Prado RZJ120 9/2002- HBSK5C Hand Brake Kit Complete
Prado RZJ120 9/2002- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Prado RZJ120 9/2002- 46550-60030K Hand Brake Shoe Kit
Prado RZJ120 9/2002- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Prado TRJ150 8/2009- HBK5 Hand Brake Spring Kit
Prado TRJ150 8/2009- HBSK5 Hand Brake Shoe & Parts Kit
Prado TRJ150 8/2009- HBSK5C Hand Brake Kit Complete
Prado TRJ150 8/2009- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Prado TRJ150 8/2009- 46550-60030K Hand Brake Shoe Kit
Prado TRJ150 8/2009- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Prado VZJ90 4/1996- HBK2 Hand Brake Spring Kit
Prado VZJ90 4/1996- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Prado VZJ90 4/1996- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Prado VZJ90 4/1996- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
 Prado VZJ90 4/1996- 46550-60030K Hand Brake Shoe Kit
Prado VZJ90 4/1996- 46550-60030KM Hand Brake Shoe & Modified Strut Kit
Prado VZJ95 4/1996- HBK2 Hand Brake Spring Kit
Prado VZJ95 4/1996- HBSK2 Hand Brake Shoe & Spring Kit Minor Disc Brake
Prado VZJ95 4/1996- HBSK2C Hand Brake Shoe & Spring Kit Major Disc Brake
Prado VZJ95 4/1996- 47447-79KIT Hand Brake Shoe Backing Plate Pin Kit
Prado VZJ95 4/1996- 46550-60030K Hand Brake Shoe Kit
Prado VZJ95 4/1996- 46550-60030KM Hand Brake Show & Modified Strut Kit





  Contact Us

TERRAIN TAMER 4X4 PARTS

© Terrain Tamer 2022
