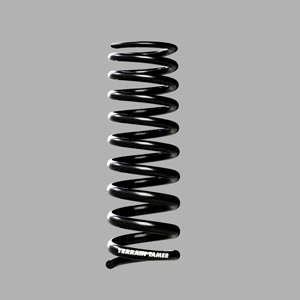

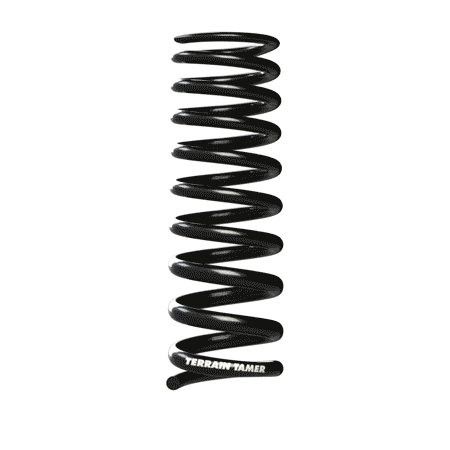

Australian made, TERRAIN TAMER SMART COILS are designed to reduce rebound forces travelling through the coil spring. This unique design with a tapered wire is made for front coil springs only.

As the driver turns or changes lanes, the progressive Smart Coil increases driver control and reduces wear on the suspension system.

  • Australian made
  • Tapered wire design
  • Reduces the vehicle’s body roll
  • Made from X5K Spring Steel

TT Smart Coilsl

 Terrain Tamer Smart Coils PDF  Get a Quote

FIAT - Terrain Tamer Parts Suitable for Fiat Vehicles

MAKE MODEL YEAR PART NO. DESCRIPTION KITS.
Fullback Fullback 2016- TTCS-2413T Front raised 35mm-50kg with bull bar SK080
Fullback Fullback 2016- TTCS-2439T Front raised 35mm-100kg with bull bar SK080



FORD - Terrain Tamer Parts Suitable for Ford Vehicles

MAKE MODEL YEAR PART NO. DESCRIPTION KITS.
Everest UA 2015- TTCS-2300T Front raised 40mm-50kg comfort
Everest UA 2015- TTCS-2410T Front raised 40mm-100kg with bull bar
Everest UA 2015- TTCS-2418T Front raised 40mm-100kg+ with bull bar
Ranger PX I, II 8/2011 to 7/2018 TTCS-2300T Front raised 40mm-50kg comfort SK072
Ranger PX I, II 8/2011 to 7/2018 TTCS-2410T Front raised 40mm-100kg with bull bar  SK072
Ranger PX I, II 8/2011 to 7/2018 TTCS-2418T Front raised 40mm-100kg+ with bull bar  SK072
Ranger PX III 8/2018- TTCS-2493T Front raised 40mm-50kg comfort SK098
Ranger PX III 8/2018- TTCS-2494T Front raised 40mm-100kg with bull bar  SK098



HOLDEN - Terrain Tamer Parts Suitable for Holden Vehicles

MAKE MODEL YEAR PART NO. DESCRIPTION KITS.
Colorado RG1 5/2012-3/2013 TTCS-2301T Front raised 40mm standard load SK076
Colorado RG1 5/2012-3/2013 TTCS-2302T Front raised 40mm-50-100kg with bull bar SK076
Colorado RG2 4/2013-6/2016 TTCS-2400T Front raised 40mm-100kg with bull bar  SK075
Colorado RG2 4/2013-6/2016 TTCS-2402T Front raised 40mm-50kg comfort SK075
Coloardo RG3 7/2016- TTCS-2301T Front raised 40mm standard load SK076
Coloardo RG3 7/2016- TTCS-2302T Front raised 40mm-50-100kg with bull bar SK076
Colorado 7 RG 11/2012- TTCS-2301T Front raised 40mm standard load SK100
Colorado 7 RG 11/2012- TTCS-2302T Front raised 40mm-50kg SK100



ISUZU - Terrain Tamer Parts Suitable for Isuzu Vehicles

MAKE MODEL YEAR PART NO. DESCRIPTION KITS.
D MAX TFS85 5/2012-6/2020 TTCS-2302T Front raised 40mm standard load with Bull Bar SK073
D MAX TFS85 5/2012-6/2020 TTCS-2303T Front raised 40mm 50-100kg with bull bar SK073
D MAX TFS40 7/2020- TTCS-2302T Front raised 40mm standard load with Bull Bar
D MAX TFS40 7/2020- TTCS-2303T Front raised 40mm 50-100kg with bull bar
MU-X UCS85 11/2013- TTCS-2301T Front raised 40mm Standard with Bull Bar SK099
MU-X UCS85 11/2013- TTCS-2302T Front raised 40mm 50-100kg with Bull Bar SK099



LDV - Terrain Tamer Parts Suitable for LDV Vehicles

MAKE MODEL YEAR PART NO. DESCRIPTION KITS.
 LDV T60 10/2017- TTCS-2301T Front raised 40mm standard load SK101
 LDV T60 10/2017- TTCS-2301T Front raised 40mm-50kg with bull bar SK101



MAZDA - Terrain Tamer Parts Suitable for Mazda Vehicles

MAKE MODEL YEAR PART NO. DESCRIPTION KITS.
BT50 BT50 10/2011-7/2020 TTCS-2300T Front raised 40mm-50kg comfort SK072
BT50 BT50 10/2011-7/2020 TTCS-2410T Front raised 40mm-100kg with bull bar SK072
BT50 BT50 10/2011-7/2020 TTCS-2418T Front raised 40mm-100kg+ with bull bar SK072
BT50 TFS40 8/2020- TTCS-2302T Front raised 40mm Standard with bull bar
BT50 TFS40 8/2020- TTCS-2302T Front raised 40mm 50-100kg with bull bar



MERCEDES BENZ - Terrain Tamer Parts Suitable for Mercedes Vehicles

MAKE MODEL YEAR PART NO. DESCRIPTION KITS.
X CLASS X250 2017- TTCS-2427T Front raised 30mm 50-100kg with bull bar & winch 4 Cylinder SK102





MITSUBISHI - Terrain Tamer Parts Suitable for Mitsubishi Vehicles

MAKE MODEL YEAR PART NO. DESCRIPTION KITS.
Challenger PB 2010- TTCS-2413T Front raised 35mm-50kg with bull bar  SK054
Pajero NP/NS/NT/NW 2000- TTCS-2432T Front raised 40mm petrol standard diesel-30kg SK045
Triton ML 7/2006- TTCS-2413T Front raised 35mm-50kg with bull bar SK054
Triton ML 7/2006- TTCS-2439T Front raised 35mm-100kg with bull bar  SK054
Triton MN 10/2009- TTCS-2413T Front raised 35mm-50kg with bull bar  SK054
Triton MN 10/2009- TTCS-2439T Front raised 35mm-100kg with bull bar  SK054
Triton MQ 1/2015- TTCS-2413T Front raised 35mm-50kg with bull bar  SK080
Triton MQ 1/2015- TTCS-2439T Front raised 35mm-100kg with bull bar  SK080
Triton MR 2019- TTCS-2413T Front raised 35mm-50kg with bull bar  SK080
Triton MR 2019- TTCS-2439T Front raised 35mm-100kg with bull bar  SK080



NISSAN - Terrain Tamer Parts Suitable for Nissan Vehicles

MAKE MODEL YEAR PART NO. DESCRIPTION KITS.
Frontier D40 2004- TTCS-2299T Front raised 40mm-50kg comfort SK034
Frontier D40 2004- TTCS-2403T Front raised 40mm-100kg with bull bar  SK034
Navara D40 2005- TTCS-2299T Front raised 40mm-50kg comfort SK034
Navara D40 2005- TTCS-2403T Front raised 40mm-100kg with bull bar  SK034
Navara NP300/D23 8/2014- TTCS-2421T Front raised 30mm-50kg comfort SK077 SK086
Navara NP300/D23 8/2014- TTCS-2427T Front riased 30mm 50-100kg with bull bar & winch SK077 SK086
Pathfinder R51 2005- TTCS-2299T Front raised 40mm-50kg comfort SK031
Pathfinder R51 2005- TTCS-2403T Front raised 40mm-100kg with bull bar  SK031
Xterra N50 2005- TTCS-2299T Front raised 40mm-50kg comfort
Xterra N50 2005- TTCS-2403T Front raised 40mm-100kg with bull bar



TOYOTA - Terrain Tamer Parts Suitable for Toyota Vehicles

MAKE MODEL YEAR PART NO. DESCRIPTION KITS.
FJ CRUISER GSJ15 1/2006- TTCS-2303T Front raised 40mm-50kg with bull bar SK091
FJ CRUISER GSJ15 1/2006- TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK091
FJ CRUISER GSJ15 1/2006- TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch SK091
4 RUNNER GRN215 2003-2009 TTCS-2303T Front raised 40mm-50kg with bull bar & winch without kdss SK001
4 RUNNER GRN215 2003-2009 TTCS-2304T Front raised 40mm-100kg with bull bar & winch without kdss SK001
4 RUNNER GRN215 2003-2009 TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch without kdss SK001
4 RUNNER GRN285 2010- TTCS-2303T Front raised 40mm-50kg with bull bar & winch without kdss SK090
4 RUNNER GRN285 2010- TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK090
4 RUNNER GRN285 2010- TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch without kdss SK090
4 RUNNER KDN215 2003-2009 TTCS-2303T Front raised 40mm-50kg with bull bar & winch without kdss SK001
4 RUNNER KDN215 2003-2009 TTCS-2304T Front raised 40mm-100kg with bull bar & winch without kdss SK001
4 RUNNER KDN215 2003-2009 TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch without kdss SK001
4 RUNNER TRN215 2003-2009 TTCS-2303T Front raised 40mm-50kg with bull bar & winch without kdss SK001
4 RUNNER TRN215 2003-2009 TTCS-2304T Front raised 40mm-100kg with bull bar & winch without kdss SK001
4 RUNNER TRN215 2003-2009 TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch without kdss SK001
4 RUNNER TRN285 2010- TTCS-2303T Front raised 40mm-50kg with bull bar & winch without kdss SK090
4 RUNNER TRN285 2010- TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK090
4 RUNNER TRN285 2010- TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch without kdss SK090
4 RUNNER UZN215 2003-2009 TTCS-2303T Front raised 40mm-50kg with bull bar & winch without kdss SK001
4 RUNNER UZN215 2003-2009 TTCS-2304T Front raised 40mm-100kg with bull bar & winch without kdss SK001
4 RUNNER UZN215 2003-2009 TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch without kdss SK001
4 RUNNER VZN215 2003-2009 TTCS-2303T Front raised 40mm-50kg with bull bar & winch without kdss SK001
4 RUNNER VZN215 2003-2009 TTCS-2304T Front raised 40mm-100kg with bull bar & winch without kdss SK001
4 RUNNER VZN215 2003-2009 TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch without kdss SK001
FORTUNER GGN50 2004-2015 TTCS-2303T Front raised 40mm- 50kg with bull bar SK105
FORTUNER GGN50 2004-2015 TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK105
FORTUNER GGN60 2004-2015 TTCS-2303T Front raised 40mm- 50kg with bull bar SK105
FORTUNER GGN60 2004-2015 TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK105
FORTUNER KUN50 2004-2015 TTCS-2303T Front raised 40mm- 50kg with bull bar SK105
FORTUNER KUN50 2004-2015 TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK105
FORTUNER KUN51 2004-2015 TTCS-2303T Front raised 40mm- 50kg with bull bar SK105
FORTUNER KUN51 2004-2015 TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK105
FORTUNER KUN60 2004-2015 TTCS-2303T Front raised 40mm- 50kg with bull bar SK105
FORTUNER KUN60 2004-2015 TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK105
FORTUNER KUN61 2004-2015 TTCS-2303T Front raised 40mm- 50kg with bull bar SK105
FORTUNER KUN61 2004-2015 TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK105
FORTUNER LAN50 2004-2015 TTCS-2303T Front raised 40mm- 50kg with bull bar SK105
FORTUNER LAN50 2004-2015 TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK105
FORTUNER TGN51 2004-2015 TTCS-2303T Front raised 40mm- 50kg with bull bar SK105
FORTUNER TGN51 2004-2015 TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK105
FORTUNER TGN61 2004-2015 TTCS-2303T Front raised 40mm- 50kg with bull bar SK105
FORTUNER TGN61 2004-2015 TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK105
FORTUNER GUN156 7/2015- TTCS-2302T Front raised 40mm-50kg with bull bar SK082
HILUX GGN25 3/2005- TTCS-2302T Front raised 40mm Standard Load No Accessories SK016
HILUX GGN25 3/2005- TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK016
HILUX GGN25 3/2005- TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch SK016
HILUX GGN125 5/2015-2021 TTCS-2302T Front raised 40mm-50kg with bull bar SK081
HILUX GGN125 5/2015-2021 TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK081
HILUX GGN125 5/2015-2021 TTCS-2412T Front raised 40mm-100kg+ with bull bar & winch SK081
HILUX GUN125 5/2015-2021 TTCS-2303T Front raised 40mm-50kg with bull bar SK081
HILUX GUN125 5/2015-2021 TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK081
HILUX GUN125 5/2015- 2021 TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch SK081
HILUX GUN126 5/2015- 2021 TTCS-2303T Front raised 40mm-50kg with bull bar SK081
HILUX GUN126 5/2015- 2021 TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK081
HILUX GUN126 5/2015- 2021 TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch SK081
HILUX KUN25 7/2005- TTCS-2303T Front raised 40mm-50kg with bull bar SK016
HILUX KUN25 7/2005- TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK016
HILUX KUN25 7/2005- TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch SK016
HILUX KUN26 3/2005- TTCS-2303T Front raised 40mm-50kg with bull bar SK016
HILUX KUN26 3/2005- TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK016
HILUX KUN26 3/2005- TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch SK016
HILUX KUN125 5/2015- 2021 TTCS-2303T Front raised 40mm-50kg with bull bar SK081
HILUX KUN125 5/2015- 2021 TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK081
HILUX KUN125 5/2015- 2021 TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch SK081
HILUX KUN126 5/2015- 2021 TTCS-2303T Front raised 40mm-50kg with bull bar SK081
HILUX KUN126 5/2015- 2021 TTCS-2304T Front raised 40mm-100kg with bull bar & winch SK081
HILUX KUN126 5/2015- 2021 TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch SK081
LANDCRUISER FZJ78/79 8/1999- TTCS-2305T Front raised 50mm-100kg with bull bar SK007 SK036
LANDCRUISER FZJ78/79 8/1999- TTCS-2306T Front raised 50mm 100KG+ with bull bar & winch SK007 SK036
LANDCRUISER GRJ78/79 7/2009- TTCS-2305T Front raised 50mm-100kg with bull bar SK007 SK036
LANDCRUISER GRJ78/79 7/2009- TTCS-2306T Front raised 50mm 100KG+ with bull bar & winch SK007 SK036
LANDCRUISER HDJ78/79 8/1999- TTCS-2305T Front raised 50mm-100kg with bull bar SK007 SK036
LANDCRUISER HDJ78/79 8/1999- TTCS-2306T Front raised 50mm 100KG+ with bull bar & winch SK007 SK036
LANDCRUISER HZJ71/74 8/1999- TTCS-2305T Front raised 50mm-100kg with bull bar SK087
LANDCRUISER HZJ71/74 8/1999- TTCS-2306T Front raised 50mm 100KG+ with bull bar & winch SK087
LANDCRUISER HZJ76/78/79 8/1999- TTCS-2305T Front raised 50mm-100kg with bull bar SK007 SK036
LANDCRUISER HZJ76/78/79 8/1999- TTCS-2306T Front raised 50mm 100KG+ with bull bar & winch SK007 SK036
LANDCRUISER VDJ76/78/79 1/2007- TTCS-2305T Front raised 50mm-100kg with bull bar SK007 SK036
LANDCRUISER VDJ76/78/79 1/2007- TTCS-2306T Front raised 50mm 100KG+ with bull bar & winch SK007 SK036
LANDCRUISER UZJ200/VDJ200 9/2007- TTCS-2366T Front raised 40mm-100kg with bull bar SK022
LANDCRUISER UZJ200/VDJ200 9/2007- TTCS-2409T Front raised 40mm-100kg+ with bull bar & winch SK022
LANDCRUISER FJ/FZJ/HDJ/HZJ80 1/1990- TTCS-2417T Front raised 50mm-50kg with bull bar SK006
LANDCRUISER FJ/FZJ/HDJ/HZJ80 1/1990- TTCS-2424T Front raised 50mm-100kg with bull bar SK006
LANDCRUISER FZJ/HZJ105 1/1998- TTCS-2417T Front raised 50mm-50kg with bull bar SK004
LANDCRUISER FZJ/HZJ105 1/1998- TTCS-2424T Front raised 50mm-100kg with bull bar SK004
LANDCRUISER PRADO GDJ150 6/2015- TTCS-2303T Front raised 40mm-50kg with bull bar & winch without kdss SK090 SK092 SK094
LANDCRUISER PRADO GDJ150 6/2015- TTCS-2304T Front raised 40mm-100kg with bull bar & winch without kdss SK090 SK092 SK094
LANDCRUISER PRADO GDJ150 6/2015- TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch without kdss SK090 SK092 SK094
LANDCRUISER PRADO GRJ120 9/2002- TTCS-2303T Front raised 40mm-50kg with bull bar & winch without kdss SK001 SK093
LANDCRUISER PRADO GRJ120 9/2002- TTCS-2304T Front raised 40mm-100kg with bull bar & winch without kdss SK001 SK093
LANDCRUISER PRADO GRJ120 9/2002- TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch without kdss SK001 SK093
LANDCRUISER PRADO GRJ150 8/2009- TTCS-2303T Front raised 40mm-50kg with bull bar & winch without kdss SK090 SK092 SK094
LANDCRUISER PRADO GRJ150 8/2009- TTCS-2304T Front raised 40mm-100kg with bull bar & winch without kdss SK090 SK092 SK094
LANDCRUISER PRADO GRJ150 8/2009- TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch without kdss SK090 SK092 SK094
LANDCRUISER PRADO KDJ120 9/2002- TTCS-2303T Front raised 40mm-50kg with bull bar & winch without kdss SK001 SK093
LANDCRUISER PRADO KDJ120 9/2002- TTCS-2304T Front raised 40mm-100kg with bull bar & winch without kdss SK001 SK093
LANDCRUISER PRADO KDJ120 9/2002- TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch without kdss SK001 SK093
LANDCRUISER PRADO KDJ150 8/2009- TTCS-2303T Front raised 40mm-50kg with bull bar & winch without kdss SK090 SK092 SK094
LANDCRUISER PRADO KDJ150 8/2009- TTCS-2304T Front raised 40mm-100kg with bull bar & winch without kdss SK090 SK092 SK094
LANDCRUISER PRADO KDJ150 8/2009- TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch without kdss SK090 SK092 SK094
LANDCRUISER PRADO KZJ120 9/2002- TTCS-2303T Front raised 40mm-50kg with bull bar & winch without kdss SK001 SK093
LANDCRUISER PRADO KZJ120 9/2002- TTCS-2304T Front raised 40mm-100kg with bull bar & winch without kdss SK001 SK093
LANDCRUISER PRADO KZJ120 9/2002- TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch without kdss SK001 SK093
LANDCRUISER PRADO RZJ120 9/2002- TTCS-2303T Front raised 40mm-50kg with bull bar & winch without kdss SK001 SK093
LANDCRUISER PRADO RZJ120 9/2002- TTCS-2304T Front raised 40mm-100kg with bull bar & winch without kdss SK001 SK093
LANDCRUISER PRADO RZJ120 9/2002- TTCS-2412T Front raised 40mm 100kg+ with bull bar & winch without kdss

SK001 SK093



VOLKSWAGEN - Terrain Tamer Parts Suitable for Volkswagen Vehicles

MAKE MODEL YEAR PART NO. DESCRIPTION KITS.
Amarok   2011- TTCS-2475T Front raised 25mm-50kg 4 Cylinder SK095
