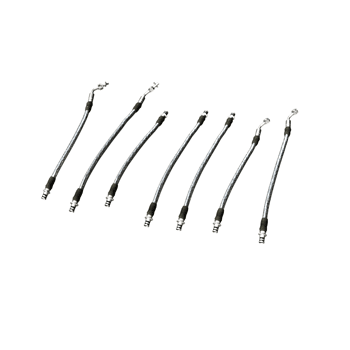

Terrain Tamer’s range of Braided Brake Hoses, consist of three layers, working together to provide the part with not only a longer lifespan, but also improved brake pedal height during heavy braking, and exceptional braking performance. +

The first of these layers is a durable internal Teflon core line, which works to deliver the brake fluid. Surrounding that is the braided stainless-steel sheath, which works to stop any swelling or deformation of the brake line when brakes are applied.

This sheath alone is less prone to damage than a traditional rubber hose, however Terrain Tamer have added a third outside plastic layer, which provides abrasion resistance and protects the stainless steel & Teflon layers from contaminants or damage from dust, dirt & grime.

Together these three layers act to extend the life of the braided brake lines and provide peace of mind for a part that commonly fals prey to a case of ‘out of sight, out of mind’ until a problem occurs.

High brake pressures can cause swelling in standard rubber brake hoses, and age and contaminants from rough 4WD environments can wear the rubber down or cause cracking and deterioration in the outer sheath. Close

  • No swelling
  • Greater brake response
  • Longer life span
  • Stainless steel



 Terrain Tamer Braided Brake Hoses PDF  Get a Quote

TOYOTA - Braided Brake Lines Suitable for Toyota Vehicles (Kits)

MAKE MODEL YEAR PART NO. APPLICATION STORE
Hilux GGN25 8/2004- TTBHK05 Standard to 50mm Raised Suspension without VSC BUY NOW
Hilux GGN25 8/2004 TTBHK06 Standard to 50mm Raised Suspension with VSC  BUY NOW
Hilux GGN35 8/2004- TTBHK05 Standard to 50mm Raised Suspension without VSC BUY NOW
Hilux GGN35 8/2004- TTBHK06 Standard to 50mm Raised Suspension with VSC  BUY NOW
Hilux GGN125 5/2015- TTBHK07 Standard to 50mm Raised Suspension  BUY NOW
Hilux GUN125 5/2015- TTBHK07 Standard to 50mm Raised Suspension  BUY NOW
Hilux GUN126 5/2015- TTBHK07 Standard to 50mm Raised Suspension  BUY NOW
Hilux GUN136 5/2015- TTBHK07 Standard to 50mm Raised Suspension  BUY NOW
Hilux KUN25 8/2004- TTBHK05 Standard to 50mm Raised Suspension without VSC BUY NOW
Hilux KUN25 8/2004- TTBHK06 Standard to 50mm Raised Suspension with VSC  BUY NOW
Hilux KUN26 8/2004- TTBHK05 Standard to 50mm Raised Suspension without VSC BUY NOW
Hilux KUN26 8/2004- TTBHK06 Standard to 50mm Raised Suspension with VSC  BUY NOW
Hilux KUN36 8/2004- TTBHK05 Standard to 50mm Raised Suspension without VSC BUY NOW
Hilux KUN36 8/2004- TTBHK06 Standard to 50mm Raised Suspension with VSC  BUY NOW
Hilux KUN125 5/2015- TTBHK07 Standard to 50mm Raised Suspension  BUY NOW
Hilux KUN126 5/2015- TTBHK07 Standard to 50mm Raised Suspension  BUY NOW
HIlux KUN136 5/2015- TTBHK07 Standard to 50mm Raised Suspension  BUY NOW
Hilux TGN126 5/2015- TTBHK07 Standard to 50mm Raised Suspension  BUY NOW
Hilux TGN136 5/2015- TTBHK07 Standard to 50mm Raised Suspension  BUY NOW
Landcruiser VDJ76 1/2007-7/2012 TTBHK01 Suits without ABS BUY NOW
Landcruiser VDJ76 8/2012-7/2016 TTBHK02 Suits with ABS BUY NOW
Landcruiser VDJ76 8/2016- TTBHK03 Suits with ABS BUY NOW
Landcruiser VDJ76 8/2016- TTBHK04 Suits with ABS & Stability Control BUY NOW
Landcruiser VDJ78 1/2007-7/2012 TTBHK01 Suits without ABS BUY NOW
Landcruiser VDJ78 8/2012-7/2016 TTBHK02 Suits with ABS BUY NOW
Landcruiser VDJ78 8/2016- TTBHK03 Suits with ABS BUY NOW
Landcruiser VDJ78 8/2016- TTBHK04 Suits with ABS & Stability Control BUY NOW
Landcruiser VDJ78 1/2007- TTBHK10 Suits Rear Drum Brake without ABS BUY NOW
Landcruiser VDJ78 8/2012-7/2016 TTBHK11 Suits Rear Drum Brake with ABS BUY NOW
Landcruiser VDJ78 8/2016- TTBHK12 Suits Rear Drum Brake with ABS BUY NOW
Landcruiser VDJ79 1/2007-7/2012 TTBHK01 Suits without ABS BUY NOW
Landcruiser VDJ79 8/2012-7/2016 TTBHK02 Suits with ABS BUY NOW
Landcruiser VDJ79 8/2016- TTBHK03 Suits with ABS BUY NOW
Landcruiser VDJ79 8/2016- TTBHK04 Suits with ABS & Stability Control BUY NOW
Landcruiser VDJ79 1/2007- TTBHK10 Suits Rear Drum Brake without ABS BUY NOW
Landcruiser VDJ79 8/2012-7/2016 TTBHK11 Suits Rear Drum Brake with ABS BUY NOW
Landcruiser VDJ79 8/2016- TTBHK12 Suits Rear Drum Brake with ABS BUY NOW
Landcruiser URJ200 9/2007-1/2012 TTBHK08 Standard to 50mm Raised Suspension BUY NOW
Landcruiser UZJ200 9/2007-1/2012 TTBHK08 Standard to 50mm Raised Suspension BUY NOW
Landcruiser VDJ200 9/2007-1/2012 TTBHK08 Standard to 50mm Raised Suspension BUY NOW
Landcruiser URJ200 1/2012 TTBHK09 Standard to 50mm Raised Suspension
Landcruiser UZJ200 1/2012 TTBHK09 Standard to 50mm Raised Suspension
Landcruiser VDJ200 1/2012 TTBHK09 Standard to 50mm Raised Suspension

TOYOTA - Braided Brake Lines Suitable for Toyota Vehicles (Individual Hoses)

MAKE MODEL YEAR PART NO. APPLICATION STORE
Landcruiser FZJ76 1/2007- 90947-02B48BTT Front L/H & R/H with & without ABS BUY NOW
Landcruiser FZJ76 1/2007-8/2012 90947-02B51BTT Front Centre BUY NOW
Landcruiser FZJ78 8/1999- 90947-02B48BTT Front L/H & R/H with & without ABS BUY NOW
Landcruiser FZJ78 8/1999-8/2012 90947-02B51BTT Front Centre BUY NOW
Landcruiser FZJ78 8/1999- 90947-02B52BTT Rear Chassis to Diff Housing without ABS BUY NOW
Landcruiser FZJ79 8/1999- 90947-02B48BTT Front L/H & R/H with & without ABS BUY NOW
Landcruiser FZJ79 8/1999-8/2012 90947-02B51BTT Front Centre BUY NOW
Landcruiser FZJ79 8/1999- 90947-02B52BTT Rear Chassis to Diff Housing without ABS BUY NOW
Landcruiser HDJ78 8/1999- 90947-02B48BTT Front L/H & R/H with & without ABS BUY NOW
Landcruiser HDJ78 8/1999-8/2007 90947-02B51BTT Front Centre BUY NOW
Landcruiser HDJ78 8/1999- 90947-02B52BTT Rear Chassis to Diff Housing without ABS BUY NOW
Landcruiser HDJ79 8/1999- 90947-02B48BTT Front L/H & R/H with & without ABS BUY NOW
Landcruiser HDJ79 8/1999-8/2007 90947-02B51BTT Front Centre BUY NOW
Landcruiser HDJ79 8/1999- 90947-02B52BTT Rear Chassis to Diff Housing without ABS BUY NOW
Landcruiser HZJ71 1/2007- 90947-02B48BTT Front L/H & R/H with & without ABS BUY NOW
Landcruiser HZJ71 1/2007-7/2012 90947-02B51BTT Front Centre BUY NOW
Landcruiser HZJ71 8/2012- 90947-02G94BTT Front Centre No.1 suits ABS + 50mm Raised Suspension BUY NOW
Landcruiser HZJ71 8/2012- 90947-02G96BTT Front Centre No.2 suits ABS + 50mm Raised Suspension BUY NOW
Landcruiser HZJ76 1/2007- 90947-02B48BTT Front L/H & R/H with & without ABS BUY NOW
Landcruiser HZJ76 1/2007-7/2012 90947-02B51BTT Front Centre BUY NOW
Landcruiser HZJ76 8/2012- 90947-02G94BTT Front Centre No.1 suits ABS + 50mm Raised Suspension BUY NOW
Landcruiser HZJ76 8/2012- 90947-02G96BTT Front Centre No.2 suits ABS + 50mm Raised Suspension BUY NOW
Landcruiser HZJ78 8/1999- 90947-02B48BTT Front L/H & R/H with & without ABS BUY NOW
Landcruiser HZJ78 1/2007-7/2012 90947-02B51BTT Front Centre BUY NOW
Landcruiser HZJ78 8/2012- 90947-02G94BTT Front Centre No.1 suits ABS + 50mm Raised Suspension BUY NOW
Landcruiser HZJ78 8/2012- 90947-02G96BTT Front Centre No.2 suits ABS + 50mm Raised Suspension BUY NOW
Landcruiser HZJ78 8/1999- 90947-02B52BTT Rear Chassis to Diff Housing without ABS BUY NOW
Landcruiser HZJ79 8/1999- 90947-02B48BTT Front L/H & R/H with & without ABS BUY NOW
Landcruiser HZJ79 1/2007-7/2012 90947-02B51BTT  Front Centre  BUY NOW
Landcruiser HZJ79 8/2012- 90947-02G94BTT  Front Centre No.1 suits ABS + 50mm Raised Suspension  BUY NOW
Landcruiser HZJ79 8/2012- 90947-02G96BTT  Front Centre No.2 suits ABS + 50mm Raised Suspension  BUY NOW
Landcruiser HZJ79 8/1999- 90947-02B52BTT  Rear Chassis to Diff Housing without ABS BUY NOW
Landcruiser VDJ76 1/2007- 90947-02B48BTT Front L/H & R/H with & without ABS BUY NOW
Landcruiser VDJ76  1/2007-7/2012  90947-02B51BTT  Front Centre  BUY NOW
Landcruiser VDJ76  8/2012- 90947-02G94BTT  Front Centre No.1 suits ABS + 50mm Raised Suspension  BUY NOW
Landcruiser VDJ76 8/2012- 90947-02G96BTT Front Centre No.2 suits ABS + 50mm Raised Suspension  BUY NOW
Landcruiser VDJ76  1/2007-7/2012 90947-02FB25TT  Rear L/H or R/H with Disc Brake without ABS
Landcruiser VDJ76  8/2012-   90947-02G99BTT  Rear L/H suits Disc Brake ABS & VSC  BUY NOW
Landcruiser VDJ76 8/2012- 90947-02G98BTT Rear R/H suits Disc Brake ABS & VSC BUY NOW
Landcruiser VDJ76 1/2007-7/2016 90947-02B52BTT Rear Chassis to Diff Housing R/H without ABS + 50mm Raised Suspension BUY NOW
Landcruiser VDJ76 8/2016- 90947-02H84BTT Rear Chassis to Diff Housing R/H suits VSC + 50mm Raised Suspension BUY NOW
Landcruiser VDJ78 1/2007- 90947-02B48BTT Front L/H & R/H with & without ABS BUY NOW
Landcruiser VDJ78 1/2007-7/2012 90947-02B51BTT Front Centre BUY NOW
Landcruiser VDJ78 8/2012- 90947-02G94BTT Front Centre No.1 suits ABS + 50mm Raised Suspension BUY NOW
Landcruiser VDJ78 8/2012- 90947-02G96BTT Front Centre No.2 suits ABS + 50mm Raised Suspension BUY NOW
Landcruiser VDJ78 8/2016- 90947-02H84BTT Rear Chassis to Diff Housing R/H suits VSC + 50mm Raised Suspension BUY NOW
Landcruiser VDJ78 1/2007-7/2012 90947-02FB25TT Rear L/H or R/H with Disc Brake without ABS
Landcruiser VDJ78 8/2012- 90947-02G99BTT Rear L/H suits Disc Brake ABS & VSC BUY NOW
Landcruiser VDJ78 8/2012- 90947-02G98BTT Rear R/H suits Disc Brake ABS & VSC BUY NOW
Landcruiser VDJ78 1/2007-7/2016 90947-02B52BTT Rear Chassis to Diff Housing R/H without ABS + 50mm Raised Suspension BUY NOW
Landcruiser VDJ78 8/2016- 90947-02H84BTT Rear Chassis to Diff Housing R/H suits VSC + 50mm Raised Suspension BUY NOW
Landcruiser VDJ79 1/2007- 90947-02B48BTT Front L/H & R/H with & without ABS BUY NOW
Landcruiser VDJ79 1/2007-7/2012 90947-02B51BTT Front Centre BUY NOW
Landcruiser VDJ79 8/2012- 90947-02G94BTT Front Centre No.1 suits ABS + 50mm Raised Suspension BUY NOW
Landcruiser VDJ79 8/2012- 90947-02G96BTT Front Centre No.2 suits ABS + 50mm Raised Suspension BUY NOW
Landcruiser VDJ79 1/2007-7/2012 90947-02FB25TT Rear L/H or R/H with Disc Brake without ABS
Landcruiser VDJ79 8/2012- 90947-02G99BTT Rear L/H suits Disc Brake ABS & VSC BUY NOW
Landcruiser VDJ79 8/2012- 90947-02G98BTT Rear R/H suits Disc Brake ABS & VSC BUY NOW
Landcruiser VDJ79 1/2007-7/2016 90947-02B52BTT Rear Chassis to Diff Housing R/H without ABS + 50mm Raised Suspension BUY NOW
Landcruiser VDJ79 8/2016- 90947-02H84BTT Rear Chassis to Diff Housing R/H suits VSC + 50mm Raised Suspension BUY NOW
Landcruiser URJ200 9/2007-1/2012 90947-02F42BTT Front R/H + 50mm Raised Suspension
Landcruiser URJ200 9/2007-1/2012 90947-02F43BTT Front L/H + 50mm Raised Suspension
Landcruiser URJ200 9/2007-1/2012 90947-02F37BTT Rear R/H or L/H + 50mm Raised Suspension
Landcruiser URJ200 9/2007-1/2012 90947-02F40BTT Rear Centre No 1 + 60mm
Landcruiser URJ200 9/2007-1/2012 90947-02F41BTT Rear Centre No 2 + 60mm
Landcruiser UZJ200 9/2007-1/2012 90947-02F42BTT Front R/H + 50mm Raised Suspension
Landcruiser UZJ200 9/2007-1/2012 90947-02F43BTT Front L/H + 50mm Raised Suspension
Landcruiser UZJ200 9/2007-1/2012 90947-02F37BTT Rear R/H or L/H + 50mm Raised Suspension
Landcruiser UZJ200 9/2007-1/2012 90947-02F40BTT Rear Centre No 1 + 60mm
Landcruiser UZJ200 9/2007-1/2012 90947-02F41BTT Rear Centre No 2 + 60mm
Landcruiser VDJ200 9/2007-1/2012 90947-02F42BTT Front R/H + 50mm Raised Suspension
Landcruiser VDJ200 9/2007-1/2012 90947-02F43BTT Front L/H + 50mm Raised Suspension
Landcruiser VDJ200 9/2007-1/2012 90947-02F37BTT Rear R/H or L/H + 50mm Raised Suspension
Landcruiser VDJ200 9/2007-1/2012 90947-02F40BTT Rear Centre No 1 + 60mm
Landcruiser VDJ200 9/2007-1/2012 90947-02F41BTT Rear Centre No 2 + 60mm
Landcruiser URJ200 1/2012- 90947-02G83BTT Front R/H + 50mm Raised Suspension
Landcruiser URJ200 1/2012- 90947-02G84BTT Front L/H + 50mm Raised Suspension
Landcruiser URJ200 1/2012- 90947-02G66BTT Rear R/H or L/H + 50mm Raised Suspension
Landcruiser URJ200 1/2012- 90947-02G81BTT Rear Centre No 1 + 60mm
Landcruiser URJ200 1/2012- 90947-02G82BTT Rear Centre No 2 + 60mm
Landcruiser UZJ200 1/2012- 90947-02G83BTT Front R/H + 50mm Raised Suspension
Landcruiser UZJ200 1/2012- 90947-02G84BTT Front L/H + 50mm Raised Suspension
Landcruiser UZJ200 1/2012- 90947-02G66BTT Rear R/H or L/H + 50mm Raised Suspension
Landcruiser UZJ200 1/2012- 90947-02G81BTT Rear Centre No 1 + 60mm
Landcruiser UZJ200 1/2012- 90947-02G82BTT Rear Centre No 2 + 60mm
Landcruiser VDJ200 1/2012- 90947-02G83BTT Front R/H + 50mm Raised Suspension
Landcruiser VDJ200 1/2012- 90947-02G84BTT Front L/H + 50mm Raised Suspension
Landcruiser VDJ200 1/2012- 90947-02G66BTT Rear R/H or L/H + 50mm Raised Suspension
Landcruiser VDJ200 1/2012- 90947-02G81BTT Rear Centre No 1 + 60mm
Landcruiser VDJ200 1/2012- 90947-02G82BTT Rear Centre No 2 + 60mm
