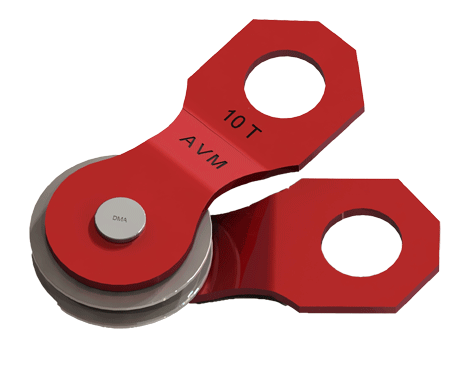

AVM Snatch Block
  • Working load 10,000 - 12,000 kg
  • For winch capacity up to 6100 kg (13,500lb)
  • For plasma rope and steel cable up to 1/2" (13 mm)
  • Pulley: diameter 4.5" (114.3 mm) with anti - friction sintered oil iron bushing. Material: solid billet steel. Finish: chrome plated
  • Side plate material: 5/16" (8 mm) cold rolled steel
  • Greaseable: not required
  • Rust resistant powder coat finish
  • Enables to recover loads with double a winch's capacity by reducing the load on the winch by half
  • Changes pulling direction without damage to the wire rope, when straight ahead is not the best option
  • Reduces heat build-up and lowers overall amperage draw

 Get a Quote

Description Part Number STORE
Snatch Block PT-01 BUY NOW
