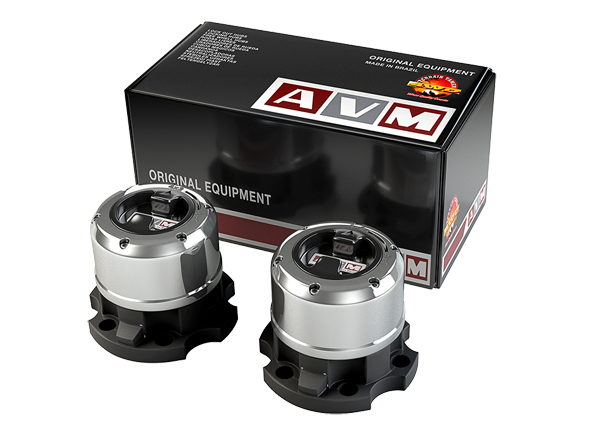

Free-wheeling hubs bolt onto the front wheel hub of the 4wd vehicle. The CV joint then passes through the 4WH which is typically splined.
The drive ring in the standard AVM hubs are made from a cast steel.
- Direct OE Replacement
- Extensive Range of Applicants
- 1 Year Warranty
- Worldwide after-market leader
- Easy Installation
Available Sizes Include:
400 Series Manual Free-Wheel Hub
- Trouble free turn dial operation
- Reinforced nodular iron body
- Salt-spray resistant epoxy enamel finish
- Die cast aluminium cap
- Corrosion Resistant floss finish
- Precision machined, heat treated internal components
900 Series Auto Free-Wheel Hub
- State of the art comfort and reliability
- Locks automatically as driver shifts into 4WD, even with the vehicle moving (Provided the transfer case is synchronized)
- Remains solidly and permanently locked at all times whilst in 4x4, uphill or coasting
- As you shift back into 2WD, the hubs disengage automatically when you reserve your vehicle
- Die cast aluminium, corrosion resistant glossy finish
- Precision machined, heat treated internal components
AVM Hubs PDF Get a Quote
CHEVROLET/GMC/GEO
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| Crew Cab |
V Series |
1976-1990 |
30 |
Internal |
NA |
AVM439 |
4439 |
|
| Geo Tracker |
All |
1989- |
26 |
6 |
90 |
AVM538 |
|
|
| Luv |
All |
-1980 |
24 |
6 |
76 |
AVM422 |
|
|
| Luv |
All |
1981-1987 |
24 |
6 |
80 |
AVM432 |
4432 |
|
| Pick Up |
K10 |
1969-1987 |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| Pick Up |
K20 |
1960-1976 |
19 |
6 |
95.25 |
AVM417 |
4417 |
|
| Pick Up |
3/4 Ton |
1977-1987 |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| Pick Up |
1 Ton |
1976-1990 |
30 |
Internal |
NA |
AVM439 |
4439 |
|
| Blazer |
All |
1969-1991 |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| Jimmy |
All |
1969-1991 |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| Suburban |
All |
1969-1991 |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| Tracker |
All |
1989- |
26 |
6 |
90 |
AVM538 |
|
|
CHRYSLER/DODGE
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| Ramcharger |
All |
1969-1993 |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| Cherokee |
Dana 44 Axle |
-1975 |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| Trailduster |
All |
1981-1984 |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| Plymouth Arrow |
All |
-1981 |
28 |
6 |
90 |
AVM428 |
4443 |
|
| D50 |
All |
-1981 |
28 |
6 |
90 |
AVM428 |
4443 |
|
| D50 |
All |
1982-1990 |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
| D300 |
All |
-1978 |
30 |
Internal |
NA |
AVM439 |
4439 |
|
| W100 |
All |
1957-1968 |
19 |
6 |
95.25 |
AVM417 |
4417 |
|
| W200 |
All |
1957-1968 |
19 |
6 |
95.25 |
AVM417 |
4417 |
|
| W250 |
All |
1990-1993 |
30 |
Internal |
NA |
AVM439 |
4439 |
|
| W300 |
All |
1976-1989 |
30 |
8 |
100.3 |
AVM441 |
|
|
| W350 |
All |
1990-1993 |
30 |
Internal |
NA |
AVM439 |
4439 |
|
DAIHATSU
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| Feroza |
F300 |
1988- |
24 |
5 |
90 |
AVM440 |
4403 |
|
| Pick Up |
F10 |
1977-1984 |
26 |
5 |
90 |
AVM420 |
4403 |
|
| Pick Up |
F20 |
1977-1984 |
26 |
5 |
90 |
AVM420 |
4403 |
|
| Rocky |
F70 |
1978-1988 |
26 |
5 |
90 |
AVM403 |
4403 |
|
| Rocky |
F70 |
1988- |
24 |
5 |
90 |
AVM440 |
4403 |
|
| Rocky |
F73 |
1984- |
26 |
6 |
90 |
AVM466 |
4404 |
|
| Rocky |
F75 |
1978-1988 |
26 |
5 |
90 |
AVM403 |
4403 |
|
| Rocky |
F75 |
1988- |
24 |
5 |
90 |
AVM440 |
4403 |
|
| Rocky |
F77 |
1978-1988 |
26 |
5 |
90 |
AVM403 |
4403 |
|
| Rocky |
F77 |
1988- |
24 |
5 |
90 |
AVM440 |
4403 |
|
| Rocky |
F78 |
1978-1988 |
26 |
5 |
90 |
AVM403 |
4403 |
|
| Rocky |
F78 |
1988- |
24 |
5 |
90 |
AVM440 |
4403 |
|
| Rocky |
F78 |
1993- |
26 |
6 |
90 |
AVM466 |
4404 |
|
| Rocky |
F80 |
1978-1988 |
26 |
5 |
90 |
AVM403 |
4403 |
|
| Rocky |
F80 |
1988- |
24 |
5 |
90 |
AVM440 |
4403 |
|
| Rocky |
F85 |
1978-1988 |
26 |
5 |
90 |
AVM403 |
4403 |
|
| Rocky |
F85 |
1988- |
24 |
5 |
90 |
AVM440 |
4403 |
|
| Rocky |
F87 |
1978-1988 |
26 |
5 |
90 |
AVM403 |
4403 |
|
| Rocky |
F87 |
1988- |
24 |
5 |
90 |
AVM440 |
4403 |
|
FORD
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| Pick Up |
All |
1963-1977 |
19 |
6 |
95.25 |
AVM417 |
4417 |
|
| F100 |
All |
1959-1986 |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| F150 |
All |
1976-2002 |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| F250 |
All |
1963-1990 |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| F250 |
All |
2005- |
30 |
Internal |
NA |
AVM439 |
4439 |
|
| F350 |
All |
1976-1990 |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| F350 |
All |
1976- |
30 |
Internal |
NA |
AVM439 |
4439 |
|
| F450 |
All |
1976-1999 |
30 |
Internal |
NA |
AVM439 |
4439 |
|
| F1000 |
All |
1991- |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| F4000 |
All |
2005- |
30 |
Internal |
NA |
AVM439 |
4439 |
|
| Bronco |
All |
1966-1996 |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| Crew Cab |
All |
1978-1990 |
19 |
Internal |
NA |
AVM418 |
4418 |
|
| Courier |
All |
1987-2002 |
26 |
6 |
76 |
AVM453 |
4453 |
|
| Explorer |
All |
1990- |
27 |
5 |
114.3 |
AVM465 |
|
|
| Maverick |
All |
1990- |
27 |
6 |
83 |
AVM452 |
4444 |
|
| Ranger |
All |
1990-1997 |
27 |
5 |
114.3 |
AVM465 |
|
|
| Ranger |
All |
1998-2001 |
27 |
Internal |
NA |
AVM470 |
|
|
| Ranger |
All |
1999-2005 |
26 |
6 |
76 |
AVM453 |
4453 |
|
GREAT WALL
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| V240 |
All |
1996- |
17 |
6 |
83 |
AVM480 |
4433 |
|
| V200 |
All |
2012- |
27 |
6 |
83 |
AVM481 |
|
|
| X200 |
All |
1996- |
17 |
6 |
83 |
AVM480 |
4433 |
|
| X240 |
All |
1996- |
17 |
6 |
83 |
AVM480 |
4433 |
|
| Deer |
Pick Up |
1996- |
17 |
6 |
83 |
AVM480 |
4433 |
|
| Sailor |
All |
1996- |
17 |
6 |
83 |
AVM480 |
4433 |
|
| Socool |
All |
1996- |
17 |
6 |
83 |
AVM480 |
4433 |
|
| Steed |
All |
1996- |
17 |
6 |
83 |
AVM480 |
4433 |
|
| Wingle |
All |
1996- |
17 |
6 |
83 |
AVM480 |
4433 |
|
HOLDEN/ISUZU
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| D Max |
TFS77 |
7/2003-9/2006 |
17 |
6 |
83 |
AVM433 |
4433 |
|
| D Max |
TFS85 |
10/2006-6/2020 |
17 |
6 |
83 |
AVM433 |
4433 |
|
| Frontera |
M7 |
1995-1998 |
17 |
6 |
83 |
AVM449 |
|
|
| Jackaroo |
UBS |
1983-1986 |
24 |
6 |
80 |
AVM432 |
4432 |
|
| Jackaroo |
UBS |
1987- |
17 |
6 |
83 |
AVM433 |
4433 |
|
| Jackaroo |
All |
1983-1986 |
24 |
6 |
80 |
AVM432 |
4432 |
|
| Jackaroo |
All |
1987-2003 |
17 |
6 |
83 |
AVM433 |
4433 |
|
| KB40 |
All |
-1985 |
24 |
6 |
76 |
AVM422 |
|
|
| KB2500 |
All |
1987-2003 |
17 |
6 |
83 |
AVM433 |
4433 |
|
| Trooper |
1 |
1983-1986 |
24 |
6 |
80 |
AVM432 |
4432 |
|
| Trooper |
2 |
1983-1986 |
24 |
6 |
80 |
AVM432 |
4432 |
|
| Trooper |
2 |
1987-2003 |
17 |
6 |
83 |
AVM433 |
4433 |
|
| Rodeo |
TF |
1987- |
17 |
6 |
83 |
AVM433 |
4433 |
|
HYUNDAI/ASIA MOTOR
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| Galloper |
All |
1991- |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
| Rocsta |
R1 |
1991- |
10 |
6 |
87.3 |
AVM448 |
|
|
| Terracan |
All |
1991- |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
JEEP
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| CJ |
Universal |
1942-1971 |
10 |
6 |
87.3 |
AVM401 |
|
|
| CJ |
Universal |
1972-1980 |
27 |
6 |
87.3 |
AVM402 |
|
|
| CJ |
Universal |
1981-1986 |
27 |
5 |
87.3 |
AVM426 |
4426 |
|
| Camper |
SPL |
1969-1974 |
10 |
6 |
87.3 |
AVM401 |
|
|
| Cherokee |
All |
-1973 |
10 |
6 |
87.3 |
AVM401 |
|
|
| Commando |
All |
1966-1971 |
10 |
6 |
87.3 |
AVM401 |
|
|
| Commander |
All |
1974-1991 |
19 |
6 |
95.25 |
AVM417 |
4417 |
|
| Gladiator |
All |
-1973 |
10 |
6 |
87.3 |
AVM401 |
|
|
| Jeepster |
C101 |
1966-1971 |
10 |
6 |
87.3 |
AVM401 |
|
|
| Jeepster |
C104 |
1972-1973 |
27 |
6 |
87.3 |
AVM402 |
|
|
| M38A1 |
All |
1942-1971 |
10 |
6 |
87.3 |
AVM401 |
|
|
| Pick Up |
J4800 |
1965-1974 |
10 |
6 |
87.3 |
AVM401 |
|
|
| Pick Up |
J20 |
1972-1976 |
19 |
6 |
95.25 |
AVM417 |
4417 |
|
| Pick Up |
J10 |
1974-1991 |
19 |
6 |
95.25 |
AVM417 |
4417 |
|
| Wagoneer |
All |
-1973 |
10 |
6 |
87.3 |
AVM401 |
|
|
| Willys |
All |
1942-1971 |
10 |
6 |
87.3 |
AVM401 |
|
|
| Scrambler |
All |
1981-1986 |
27 |
5 |
87.3 |
AVM426 |
4426 |
|
KIA
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| Besta |
All |
1997- |
26 |
6 |
76 |
AVM460K |
|
|
| Bongo |
All |
2004- |
26 |
6 |
76 |
AVM460K |
|
|
| Ceres |
All |
1991- |
10 |
6 |
87.3 |
AVM448 |
|
|
| Frontier |
All |
1997- |
26 |
6 |
76 |
AVM460K |
|
|
| Sportage |
All |
1994-1997 |
26 |
6 |
76 |
AVM460K |
|
|
| Sportage |
All |
1997- |
26 |
6 |
76 |
AVM460K |
|
|
| Sportage Grand |
All |
1997- |
26 |
6 |
76 |
AVM460K |
|
|
| Retona |
All |
1997- |
26 |
6 |
76 |
AVM460K |
|
|
LANDROVER
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART NO. MANUAL |
SERVICE KIT |
PART NO. AUTO |
| Series 1 |
All |
1948-1958 |
10 |
6 |
95.25 |
AVM405 |
4405 |
|
| Series 2 |
All |
1958-1961 |
10 |
6 |
95.25 |
AVM405 |
4405 |
|
| Series 2A |
All |
1961-1971 |
10 |
6 |
95.25 |
AVM405 |
4405 |
|
| Series 3 |
88" WB |
1971-1980 |
10 |
6 |
95.25 |
AVM405 |
4405 |
|
| Series 3 |
88" WB |
1973-1985 |
24 |
6 |
95.25 |
AVM406 |
4406 |
|
| Series 3 |
109" WB |
1973-1985 |
24 |
6 |
95.25 |
AVM406 |
4406 |
|
| Defender |
90 |
1984-1985 |
24 |
5 |
93.45 |
AVM446** |
4446 |
|
| Defender |
110 |
1984-1993 |
24 |
5 |
93.45 |
AVM446** |
4446 |
|
| Defender |
130 |
1986-1993 |
24 |
5 |
93.45 |
AVM446** |
4446 |
|
| Defender |
All |
1994- |
24 |
5 |
93.45 |
AVM451* |
|
|
| Discovery |
Series 1 |
1994- |
24 |
5 |
93.45 |
AVM451* |
|
|
* Only with Transfer Case LT230 & LT230T
** Convert Transfer Box from Permenant 4WD to Selecrable 2 or 4WD
MAHINDRA
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| Bolero |
All |
1981- |
10 |
6 |
87.3 |
AVM401 |
|
|
| CL |
340 |
1981- |
10 |
6 |
87.3 |
AVM401 |
|
|
| CJ |
340 |
1981- |
10 |
6 |
87.3 |
AVM401 |
|
|
| Scorpio |
All |
1995- |
31 |
6 |
90 |
AVM447 |
|
|
| SK Silver Mount |
All |
1995- |
31 |
6 |
90 |
AVM447 |
|
|
MAZDA
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| B3000 |
All |
2001- |
27 |
Internal |
NA |
AVM470 |
|
|
| B4000 |
All |
2001- |
27 |
Internal |
NA |
AVM470 |
|
|
| B Series |
All |
1999-2002 |
26 |
6 |
76 |
AVM453 |
4453 |
|
| Fighter |
All |
1999-2001 |
26 |
6 |
76 |
AVM453 |
4453 |
|
| Navajo |
All |
1990-1994 |
27 |
5 |
114.3 |
AVM465 |
|
|
| Pick Up |
All |
1994-1997 |
27 |
5 |
114.3 |
AVM465 |
|
|
MITSUBISHI
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| L200 |
All |
-1991 |
28 |
6 |
90 |
AVM428 |
4443 |
|
| L200 |
All |
1991- |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
| L300 |
All |
1982- |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
| Delica |
All |
1988- |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
| Pajero |
NH |
5/1991-1993 |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
| Pajero |
NJ |
6/1993-1996 |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
| Pajero |
NK |
10/1996-7/1997 |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
| Pajero |
NL |
8/1997-6/2000 |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
| Triton |
ME |
10/1986-1988 |
28 |
6 |
90 |
AVM428 |
4443 |
|
| Triton |
MF |
7/1988-1989 |
28 |
6 |
90 |
AVM428 |
4443 |
|
| Triton |
MG |
9/1989-1990 |
28 |
6 |
90 |
AVM428 |
4443 |
|
| Triton |
MH |
9/1990-1991 |
28 |
6 |
90 |
AVM428 |
4443 |
|
| Triton |
MH |
9/1990-1992 |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
| Triton |
MJ |
8/1992-1996 |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
| Triton |
MK |
10/1996-6/2006 |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
| Triton |
ML |
6/2006-8/2009 |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
| Triton |
MN |
10/2009- |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
| Shogun |
All |
1988- |
28 |
6 |
88 |
AVM443 |
4443 |
AVM943 |
NISSAN
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| Pick Up |
720 |
1972-1982 |
24 |
6 |
76 |
AVM424 |
|
|
| Pick Up |
720 |
1983-1986 |
26 |
6 |
83 |
AVM444 |
4444 |
|
| Mistral |
All |
-1999 |
27 |
6 |
83 |
AVM452 |
4444 |
|
| Navara |
D21 |
9/1985-3/1992 |
27 |
6 |
83 |
AVM429 |
4444 |
|
| Navara |
D21 |
3/1992- |
28 |
6 |
83 |
AVM461 |
4444 |
AVM961 |
| Navara |
D22 |
3/1992- |
28 |
6 |
83 |
AVM461 |
4444 |
AVM961 |
| Navara |
D40 |
5/2005- |
28 |
6 |
83 |
AVM461 |
4444 |
AVM961 |
| Pathfnder |
WD21 |
9/1985-3/1992 |
27 |
6 |
83 |
AVM429 |
4444 |
|
| Pathfnder |
R50 |
3/1992- |
28 |
6 |
83 |
AVM461 |
4444 |
AVM961 |
| Patrol |
G60 |
1969-1979 |
10 |
6 |
88 |
AVM407 |
|
|
| Patrol |
MK |
8/1983-1988 |
29 |
6 |
90 |
AVM423 |
4410 |
|
| Patrol |
MQ |
1980-8/1983 |
29 |
6 |
90 |
AVM423 |
4410 |
|
| Patrol |
GQ |
8/1987- |
31 |
6 |
90 |
AVM445 |
4410 |
|
| Patrol |
GU |
10/1997- |
31 |
6 |
90 |
AVM445 |
4410 |
|
| Terrano |
Series 1 |
1986-1995 |
27 |
6 |
83 |
AVM429 |
4444 |
|
| Terrano |
Series 2 |
1993-2006 |
27 |
6 |
83 |
AVM452 |
4444 |
|
| X Trail |
T30 |
6/2001-1/2007 |
28 |
6 |
83 |
AVM461 |
4444 |
AVM961 |
OKA
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| Pick Up |
Dana 70 Axle |
-2005 |
35 |
Internal |
NA |
AVM439K |
4439 |
|
SSANGYONG
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| Korando |
Series 1 |
-1994 |
24 |
6 |
80 |
AVM432 |
4432 |
|
| Korando |
Series 2 |
1995- |
28 |
6 |
83 |
AVM450 |
4450 |
|
| Musso |
Sports |
1995- |
28 |
6 |
83 |
AVM450 |
4450 |
|
| Musso |
Wagon |
1995- |
28 |
6 |
83 |
AVM450 |
4450 |
|
| Rexton |
Wagon |
1995- |
28 |
6 |
83 |
AVM450 |
4450 |
|
SUZUKI
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART NO. MANUAL |
SERVICE KIT |
PART NO. AUTO |
| Jimny |
All |
-1998 |
26 |
6 |
90 |
AVM538 |
|
|
| Jimny |
SN413 |
10/1998- |
26 |
6 |
90 |
AVM457 |
4404 |
|
| Sierra |
SJ410 |
1978- |
26 |
6 |
90 |
AVM538 |
|
|
| Sierra |
SJ413 |
1978- |
26 |
6 |
90 |
AVM538 |
|
|
| Vitara |
All |
7/1988- |
26 |
6 |
90 |
AVM538 |
|
|
| Vitara Grand |
All |
7/1988- |
26 |
6 |
90 |
AVM538 |
|
|
TATA
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| Sumo |
All |
1994- |
31 |
6 |
90 |
AVM445 |
4410 |
|
TOYOTA
| MAKE |
MODEL |
YEAR |
SPLINE |
BOLTS |
PCD mm |
PART N0 MANUAL |
SERVICE KIT |
PART N0 AUTO |
| Blizzard |
LD10 |
8/1982-1983 |
26 |
5 |
90 |
AVM420 |
4403 |
|
| Hilux |
KDN165 |
9/2001- |
26 |
6 |
90 |
AVM456 |
4456 |
|
| Hilux |
KZN165 |
9/1999- |
26 |
6 |
90 |
AVM456 |
4456 |
|
| Hilux |
LN46 |
8/1981- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Hilux |
LN60 |
3/1984- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Hilux |
LN61 |
8/1985- |
26 |
6 |
90 |
AVM413 |
4404 |
AVM913 |
| Hilux |
LN65 |
8/1983- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Hilux |
LN67 |
8/1983- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Hilux |
LN106 |
8/1988- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Hilux |
LN107 |
8/1991- |
26 |
6 |
90 |
AVM413 |
4404 |
AVM913 |
| Hilux |
LN111 |
8/1988- |
26 |
6 |
90 |
AVM413 |
4404 |
AVM913 |
| Hilux |
LN130 |
8/1989- |
26 |
6 |
90 |
AVM413 |
4404 |
AVM913 |
| Hilux |
LN167 |
8/1997- |
26 |
6 |
90 |
AVM456 |
4456 |
|
| Hilux |
LN172 |
11/1997- |
26 |
6 |
90 |
AVM456 |
4456 |
|
| Hilux |
RN36 |
1/1979- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Hilux |
RN46 |
1/1979- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Hilux |
RN61 |
8/1985- |
26 |
6 |
90 |
AVM413 |
4404 |
AVM913 |
| Hilux |
RN67 |
8/1983- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Hilux |
RN105 |
8/1988- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Hilux |
RN106 |
8/1991- |
26 |
6 |
90 |
AVM413 |
4404 |
AVM913 |
| Hilux |
RN110 |
8/1988- |
26 |
6 |
90 |
AVM413 |
4404 |
AVM913 |
| Hilux |
RN130 |
8/1989- |
26 |
6 |
90 |
AVM413 |
4404 |
AVM913 |
| Hilux |
RZN169 |
8/1997-8/2002 |
26 |
6 |
90 |
AVM456 |
4456 |
|
| Hilux |
RZN174 |
11/1997-8/2002 |
26 |
6 |
90 |
AVM456 |
4456 |
|
| Hilux |
VZN130 |
8/1990- |
26 |
6 |
90 |
AVM413 |
4404 |
AVM913 |
| Hilux |
VZN167 |
8/2001- |
26 |
6 |
90 |
AVM456 |
4456 |
|
| Hilux |
VZN172 |
8/2001- |
26 |
6 |
90 |
AVM456 |
4456 |
|
| Hilux |
YN60 |
3/1984- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Hilux |
YN63 |
8/1985- |
26 |
6 |
90 |
AVM413 |
4404 |
AVM913 |
| Hilux |
YN65 |
8/1983- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Hilux |
YN67 |
8/1983- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Hilux |
YN106 |
8/1988- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Hilux |
YN130 |
8/1989- |
26 |
6 |
90 |
AVM413 |
4404 |
AVM913 |
| Landcruiser |
BJ40 |
1963-12/1975 |
6 |
6 |
90 |
AVM404 |
4404 |
|
| Landcruiser |
BJ40 |
1/1976-12/1978 |
30 |
6 |
90 |
AVM419 |
4404 |
|
| Landcruiser |
BJ40 |
12/1978- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
BJ42 |
8/1980- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
BJ45 |
10/1981- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
BJ46 |
8/1980- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
BJ60 |
8/1980- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
BJ70 |
11/1984-1/1990 |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
BJ73 |
11/1984-1/1990 |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
BJ74 |
11/1984-1/1990 |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
BJ75 |
11/1984-8/1988 |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
FJ40 |
1963-12/1975 |
6 |
6 |
90 |
AVM404 |
4404 |
|
| Landcruiser |
FJ40 |
1/1976-12/1978 |
30 |
6 |
90 |
AVM419 |
4404 |
|
| Landcruiser |
FJ40 |
1/1979- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
FJ45 |
1963-12/1975 |
6 |
6 |
90 |
AVM404 |
4404 |
|
| Landcruiser |
FJ45 |
1/1976-12/1978 |
30 |
6 |
90 |
AVM419 |
4404 |
|
| Landcruiser |
FJ45 |
1/1979- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
FJ55 |
1963-12/1975 |
6 |
6 |
90 |
AVM404 |
4404 |
|
| Landcruiser |
FJ55 |
1/1976-12/1978 |
30 |
6 |
90 |
AVM419 |
4404 |
|
| Landcruiser |
FJ55 |
1/1979- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
FJ60 |
8/1980- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
FJ62 |
8/1980- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
FJ70 |
11/1984- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
FJ73 |
11/1984- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
FJ75 |
11/1984- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
FJ80 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
FZJ70 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
FZJ73 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
FZJ75 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
FZJ76 |
1/2007- |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
FZJ78 |
8/1999- |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
FZJ79 |
8/1999- |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
FZJ80 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
FZJ105 |
1/1998- |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
GRJ71 |
7/2009-8/2016 |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
GRJ76 |
7/2009-8/2016 |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
GRJ78 |
7/2009-8/2016 |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
GRJ79 |
7/2009-8/2016 |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
HJ45 |
1963-12/1975 |
6 |
6 |
90 |
AVM404 |
4404 |
|
| Landcruiser |
HJ45 |
1/1976-12/1978 |
30 |
6 |
90 |
AVM419 |
4404 |
|
| Landcruiser |
HJ45 |
1/1979- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
HJ47 |
8/1980- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
HJ60 |
8/1980- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
HJ61 |
8/1980- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
HJ75 |
11/1984- |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
HDJ78 |
8/1999- |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
HDJ79 |
8/1999- |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
HDJ80 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
HDJ81 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
HDJ100 |
8/2000- |
30 |
6 |
92 |
AVM462 |
4455 |
|
| Landcruiser |
HZJ70 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
HZJ71 |
8/199- |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
HZJ73 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
HZJ74 |
8/1999- |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
HZJ75 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
HZJ76 |
1/2007- |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
HZJ77 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
HZJ78 |
8/1999- |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
HZJ79 |
8/1999- |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
HZJ80 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
HZJ105 |
1/1998- |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
LJ70 |
11/1984-1/1990 |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
LJ70 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
LJ72 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
LJ73 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
LJ77 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
LJ79 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
PZJ70 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
PZJ73 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
PZJ75 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
RJ70 |
11/1984-1/1990 |
30 |
6 |
90 |
AVM421 |
4404 |
AVM921 |
| Landcruiser |
RJ73 |
1/1990- |
30 |
6 |
90 |
AVM454 |
4454 |
|
| Landcruiser |
UZJ100 |
1/1998- |
30 |
6 |
92 |
AVM462 |
4455 |
|
| Landcruiser |
VDJ76 |
1/2007-8/2016 |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
VDJ78 |
1/2007-8/2016 |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser |
VDJ79 |
1/2007-8/2016 |
30 |
6 |
92 |
AVM455 |
4455 |
|
| Landcruiser Prado |
KZJ70 |
1991-1996 |
30 |
6 |
90 |
AVM463 |
4463 |
|
| Landcruiser Prado |
KZJ71 |
1991-1996 |
30 |
6 |
90 |
AVM463 |
4463 |
|
| Landcruiser Prado |
KZJ73 |
1991-1996 |
30 |
6 |
90 |
AVM463 |
4463 |
|
| Landcruiser Prado |
KZJ78 |
1991-1996 |
30 |
6 |
90 |
AVM463 |
4463 |
|
| Landcruiser Prado |
KZJ78 |
1991- |
30 |
6 |
90 |
AVM454 |
4454 |
|
