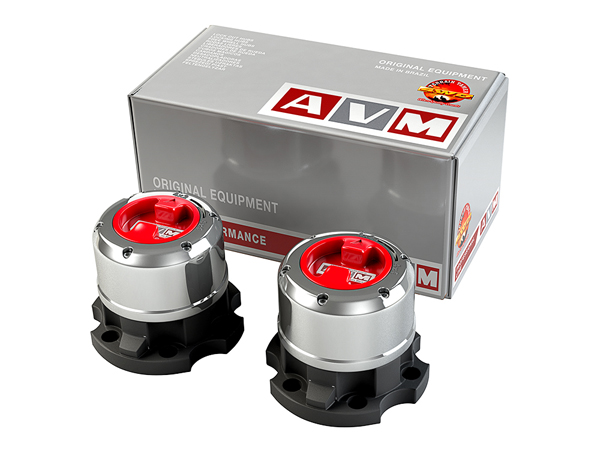

The High-Performance hubs are fitted with a heat-treated carbon steel drive ring.
Vehicles fitted with front diff locks have been known to break the standard AVM freewheeling hub. The new High-Performance hubs have been designed to strengthen this weak point in the driveline when diff locks are used.
- Direct OE Replacement
- Extensive Range of Applicants
- 1 Year Warranty
- Worldwide after-market leader
- Easy Installation
400 Series Manual Free-Wheel Hub
- Trouble free turn dial operation
- Reinforced nodular iron body
- Salt-spray resistant epoxy enamel finish
- Die cast aluminium cap
- Corrosion Resistant floss finish
- Precision machined, heat treated internal components
High Performance Hubs PDF Get a Quote
AVM High-Performance Hub FAQ
AVM high-performance hubs are specially designed for off-road and 4x4 vehicles. They feature a patented freewheeling hub, which locks into place when engaged and decouples drive to the wheel when disengaged. These hubs provide excellent traction in low speed situations, while at the same time reducing stress on vehicle components that would normally be exposed to heavy torque and power levels at higher speeds. With AVM high-performance hubs, you can take your off-roading adventure to the next level.
AVM high-performance hubs are designed to be exceptionally strong and durable in off-road situations. They use a patented freewheeling system that locks into place when engaged, which allows the drive to be transferred directly to the wheel, providing increased traction levels at low speeds. When disengaged, this same technology decouples the drive from the wheel for improved stress reduction on vehicle components normally exposed to higher torque levels. With AVM High-Performance Hubs, you can enjoy an immersive 4x4 experience with enhanced power and control.
AVM high-performance hubs offer a range of advantages for off-roading and 4x4 vehicles. These hubs provide excellent traction in low speed situations, while at the same time reducing stress on vehicle components. The patented freewheeling system also allows the direct drive to be transferred from the hub to the wheel when engaged, as well as decoupling drive from the wheel when disengaged. Additionally, these hubs are incredibly strong and durable for an immersive off-road experience with enhanced power and control. With AVM high-performance hubs, you can take your 4x4 adventures to a whole new level!
GREAT WALL
| MAKE | MODEL | YEAR | SPLINE | BOLTS | PCD mm | PART NO | SERVICE KIT |
|---|
| V240 |
All |
1996- |
17 |
6 |
83 |
AVM480HP |
4433 |
| V200 |
All |
2012- |
27 |
6 |
83 |
AVM481HP |
|
| X200 |
All |
1996- |
17 |
6 |
83 |
AVM480HP |
4433 |
| X240 |
All |
1996- |
17 |
6 |
83 |
AVM480HP |
4433 |
| Deer |
Pick Up |
1996- |
17 |
6 |
83 |
AVM480HP |
4433 |
| Sailor |
All |
1996- |
17 |
6 |
83 |
AVM480HP |
4433 |
| Socool |
All |
1996- |
17 |
6 |
83 |
AVM480HP |
4433 |
| Steed |
All |
1996- |
17 |
6 |
83 |
AVM480HP |
4433 |
| Wingle |
All |
1996- |
17 |
6 |
83 |
AVM480HP |
4433 |
JEEP
| MAKE | MODEL | YEAR | SPLINE | BOLTS | PCD mm | PART NO | SERVICE KIT |
|---|
| Commander |
All |
1974-1991 |
19 |
6 |
95.25 |
AVM417HP |
4417 |
| Pick Up |
J20 |
1972-1976 |
19 |
6 |
95.25 |
AVM417HP |
4417 |
| Pick Up |
J10 |
1974-1991 |
19 |
6 |
95.25 |
AVM417HP |
4417 |
HOLDEN/ISUZU
| MAKE | MODEL | YEAR | SPLINE | BOLTS | PCD mm | PART NO | SERVICE KIT |
|---|
| D Max |
TFS77 |
7/2003-9/2006 |
17 |
6 |
83 |
AVM433HP |
4433 |
| D Max |
TFS85 |
10/2006-6/2020 |
17 |
6 |
83 |
AVM433HP |
4433 |
| KB2500 |
All |
1987-2003 |
17 |
6 |
83 |
AVM433HP |
4433 |
| Jackaroo |
UBS |
1987- |
17 |
6 |
83 |
AVM433HP |
4433 |
| Jackaroo |
All |
1987-2003 |
17 |
6 |
83 |
AVM433HP |
4433 |
| Rodeo |
TF |
1987- |
17 |
6 |
83 |
AVM433HP |
4433 |
| Trooper |
2 |
1987-2003 |
17 |
6 |
83 |
AVM433HP |
4433 |
HYUNDAI/ASIA MOTOR
| MAKE | MODEL | YEAR | SPLINE | BOLTS | PCD mm | PART NO | SERVICE KIT |
|---|
| Galloper |
All |
1991- |
28 |
6 |
88 |
AVM443HP |
4443 |
| Terracan |
All |
1991- |
28 |
6 |
88 |
AVM443HP |
4443 |
MITSUBISHI
| MAKE | MODEL | YEAR | SPLINE | BOLTS | PCD mm | PART NO | SERVICE KIT |
|---|
| L200 |
All |
1991- |
28 |
6 |
88 |
AVM443HP |
4443 |
| L300 |
All |
1982- |
28 |
6 |
88 |
AVM443HP |
4443 |
| Delica |
All |
1988- |
28 |
6 |
88 |
AVM443HP |
4443 |
| Pajero |
NH |
5/1991-1993 |
28 |
6 |
88 |
AVM443HP |
4443 |
| Pajero |
NJ |
6/1993-1996 |
28 |
6 |
88 |
AVM443HP |
4443 |
| Pajero |
NK |
10/1996-7/1997 |
28 |
6 |
88 |
AVM443HP |
4443 |
| Pajero |
NL |
8/1997-6/2000 |
28 |
6 |
88 |
AVM443HP |
4443 |
| Triton |
MH |
9/1990-1992 |
28 |
6 |
88 |
AVM443HP |
4443 |
| Triton |
MJ |
8/1992-1996 |
28 |
6 |
88 |
AVM443HP |
4443 |
| Triton |
MK |
10/1996-6/2006 |
28 |
6 |
88 |
AVM443HP |
4443 |
| Triton |
ML |
6/2006-8/2009 |
28 |
6 |
88 |
AVM443HP |
4443 |
| Triton |
MN |
10/2009- |
28 |
6 |
88 |
AVM443HP |
4443 |
| Shogun |
All |
1988- |
28 |
6 |
88 |
AVM443HP |
4443 |
NISSAN
| MAKE | MODEL | YEAR | SPLINE | BOLTS | PCD mm | PART NO | SERVICE KIT |
|---|
| Patrol |
MK |
8/1983-1988 |
29 |
6 |
90 |
AVM423HP |
4410 |
| Patrol |
MQ |
1980-8/1983 |
29 |
6 |
90 |
AVM423HP |
4410 |
| Patrol |
GQ |
8/1987- |
31 |
6 |
90 |
AVM445HP |
4410 |
| Patrol |
GU |
10/1997- |
31 |
6 |
90 |
AVM445HP |
4410 |
TATA
| MAKE | MODEL | YEAR | SPLINE | BOLTS | PCD mm | PART NO | SERVICE KIT |
|---|
| Sumo |
All |
1994- |
31 |
6 |
90 |
AVM445HP |
4410 |
TOYOTA
| MAKE | MODEL | YEAR | SPLINE | BOLTS | PCD mm | PART NO | SERVICE KIT |
|---|
| Hilux |
LN46 |
8/1981- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Hilux |
LN60 |
3/1984- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Hilux |
LN65 |
8/1983- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Hilux |
LN67 |
8/1983- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Hilux |
LN106 |
8/1988- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Hilux |
RN36 |
1/1979- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Hilux |
RN46 |
1/1979- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Hilux |
RN67 |
8/1983- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Hilux |
RN105 |
8/1988- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Hilux |
YN60 |
3/1984- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Hilux |
YN65 |
8/1983- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Hilux |
YN67 |
8/1983- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Hilux |
YN106 |
8/1988- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
BJ40 |
12/1978- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
BJ42 |
8/1980- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
BJ45 |
10/1981- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
BJ46 |
8/1980- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
BJ60 |
8/1980- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
BJ70 |
11/1984-1/1990 |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
BJ73 |
11/1984-1/1990 |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
BJ74 |
11/1984-1/1990 |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
BJ75 |
11/1984-8/1988 |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
FJ40 |
1/1979- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
FJ45 |
1/1979- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
FJ55 |
1/1979- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
FJ60 |
8/1980- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
FJ62 |
8/1980- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
FJ70 |
11/1984- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
FJ73 |
11/1984- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
FJ75 |
11/1984- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
FJ80 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
FZJ70 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
FZJ73 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
FZJ75 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
FZJ76 |
1/2007- |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
FZJ78 |
8/1999- |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
FZJ79 |
8/1999- |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
FZJ80 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
FZJ105 |
1/1998- |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
GRJ71 |
7/2009-8/2016 |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
GRJ76 |
7/2009-8/2016 |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
GRJ78 |
7/2009-8/2016 |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
GRJ79 |
7/2009-8/2016 |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
HJ45 |
1/1979- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
HJ47 |
8/1980- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
HJ60 |
8/1980- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
HJ61 |
8/1980- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
HJ75 |
11/1984- |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
HDJ78 |
8/1999- |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
HDJ79 |
8/1999- |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
HDJ80 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
HDJ81 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
HDJ100 |
8/2000- |
30 |
6 |
92 |
AVM462HP |
4455 |
| Landcruiser |
HZJ70 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
HZJ71 |
8/1999- |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
HZJ73 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
HZJ74 |
8/1999- |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
HZJ75 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
HZJ76 |
1/2007- |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
HZJ77 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
HZJ78 |
8/1999- |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
HZJ79 |
8/1999- |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
HZJ80 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
HZJ105 |
1/1998- |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
LJ70 |
11/1984-1/1990 |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
LJ70 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
LJ72 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
LJ73 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
LJ77 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
LJ79 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
PZJ70 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
PZJ73 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
PZJ75 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
RJ70 |
11/1984-1/1990 |
30 |
6 |
90 |
AVM421HP |
4404 |
| Landcruiser |
RJ73 |
1/1990- |
30 |
6 |
90 |
AVM454HP |
4454 |
| Landcruiser |
UZJ100 |
1/1998- |
30 |
6 |
92 |
AVM462HP |
4455 |
| Landcruiser |
VDJ76 |
1/2007-8/2016 |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
VDJ78 |
1/2007-8/2016 |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser |
VDJ79 |
1/2007-8/2016 |
30 |
6 |
92 |
AVM455HP |
4455 |
| Landcruiser Prado |
KZJ70 |
1991-1996 |
30 |
6 |
90 |
AVM463HP |
4463 |
| Landcruiser Prado |
KZJ71 |
1991-1996 |
30 |
6 |
90 |
AVM463HP |
4463 |
| Landcruiser Prado |
KZJ73 |
1991-1996 |
30 |
6 |
90 |
AVM463HP |
4463 |
| Landcruiser Prado |
KZJ78 |
1991-1996 |
30 |
6 |
90 |
AVM463HP |
4463 |
| Landcruiser Prado |
KZJ78 |
1991- |
30 |
6 |
90 |
AVM454HP |
4454 |
