Electric Winches

winch web

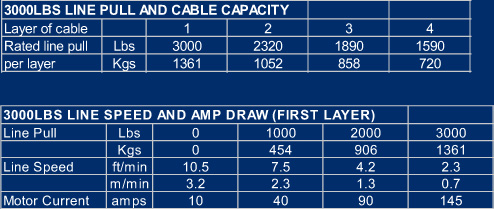

3000 lb

SPECIFICATIONS
Single Line Rated Pull 3000 lbs (1,361kg)
Motor 1.0 HP Permanent Magnet
Voltage 12 Volt
Cable 30.1 ft of 11/51" diameter (9.2 m of 5.5 mm)
Gear Train 3 Stage Planetary
Gear Reduction Ratio 153:1
Drum Size Diameter 1.24"(W) x 2.88"(L) (31.5mm x 73mm)
Weight 14.3 lbs (6.5 kg)
Overall Dimensions 7.3"(L) x 4.1"(W) x 4.1"(H) (300mm x 105mm x 105mm)
Warranty 2 Year warranty



9500 Lb Water Resistant

SPECIFICATIONS
Single line rated pull 9500 lbs (42.23 kg)
Motor 5.5 HP Motor series wound (input power)
Voltage 12 Volts
Cable 3/8" diameter (9.2 mm of 26 m)
Gear Train 3 Stage Planetary
Gear Reduction Ratio 233:1
Drum Size 2.48" (D) x 8.8"(L), (63 mm x 224 mm)
Weight 69.7 lbs (31.6 kg), 70.5lbs (32kg) (-S TYPE)
Overall dimensions 21.46" (L) x 6.30" (W) x 9.00"(H) (545 mm x 160 mm x 226 mm)
Warranty 3 Year warranty
Control Remote switch, 12ft (3.7 m ) lead
Clutch Sliding ring gear
Braking Action Automatic, in the drum
Fairlead 4-way roller
Remote Control Through control box and switch
Battery Recommended: 650CCA minimum for winching
Battery Leads 2 gauge. 72" (1.83 mm)
Mounting Bolt Pattern 10.00 + 0.015" x 4.50 + 0.010"




Duty Cycle

Line Speed and Motor Current (First Layer)

Line Pull Line Speed Motor Current
  ft/min (m/min)
lb(kN) 12V DC 12V DC
0 22.05(6.8) 65
2000(8.89) 11.67(3.6) 179
3000(13.33) 10.05(3.1) 203
6000(26.67) 9.08(2.8) 286
8000(35.56) 7.13(2.2) 330
9500(42.23) 6.16(1.9) 365

Line Pull and Cable Capacity

Layer of Cable Rated Line Pull Per Layer Cable Capacity Per Layer
  lb(kN) Ft(m)
1 9500(42.23) 15.1(4.6)
2 7600(33.78) 34.1(10.4)
3 6200(27.56) 57.7(17.6)
4 5400(24.00) 83.7(25.5)



12000 Lb Water Resistant

SPECIFICATIONS
Single line rated pull 12000 lbs (5443 kg)
Motor 7.2 HP series wound (input power)
Voltage 12 Volt
Cable 13/32" Diameter (10.2 mm of 25.50 m)
Gear Train 3 Stage Planetary
Gear Reduction Ratio 230:1
Drum Size 2.50" (D) x 8.90"(L) (63 mm x 226 mm)
Weight 93.3 lbs (42.3 kg)
Overall dimensions 22.80" (L) x 6.30" (W) x 10.6"(H) (580mm x 160mm x 268mm)
Warranty 3 Year warranty
Control Remote switch, 12ft (3.7 m) lead
Clutch Sliding ring gear
Braking Action Automatic screw cone
Fairlead 4-way roller
Remote Control Through control box and switch
Battery 12/24 Volt
Battery Leads 2 gauge, 72" (1.83mm)
Mounting Bolt Pattern 10" x 4.5" 4-M10

Duty Cycle

Line Speed and Motor Current (First Layer)

Line Pull Line Speed  Motor Current
  Ft/min (m/min)  Amps (Max)
Lbs (kgs) 12V DC 24V DC 12V DC 24V DC
0 22.3(6.8) 23(7) 100 60
4000 (1814) 13.1(4) 13.8(4.2) 220 130
7000 (3175) 9.8(3) 10.8(3.3) 330 170
12000 (5443) 5.8(1.8) 7.4(2.3) 450 220



Line Pull and Cable Capacity

Layer Rated Line Pull Total Rope On Drum
  Lbs(kgs) Ft(m)
1 12000(5443) 17.5(5.3)
2 9563(4338) 39.5(12.0)
3 7949(3606) 64.9(19.8)
4 6801(3085) 84.0(25.5)



Part Number Description
TEW3000 Electric Winch - 3000 Lb, (1,361 kg)
TEW9500WP Electric Winch - 9500 Lb, Water Resistant
TEW12000WP Electric Winch - 12000 Lb, Water Resistant



Warning: Every Terrain Tamer winch is completely rebuilt in Australian to improve resistance to rain, mud and spray found in any 4WD conditions, Automotive winches are not designed for direct contact with extreme high-pressure cleaning equipment or prolonged total immersion. Marine winches are available for this application. We recommend that winches should be operated at least every 3 months (run cable out half way and rewind).
